Luxaire® ZS-15C00D5D2AAA1A1 1082889

Delivering heating and cooling equipment you can trust requires an uncompromising approach to quality. Through innovative processes and rigorous testing, each Luxaire unit is built to provide consistently dependable comfort.

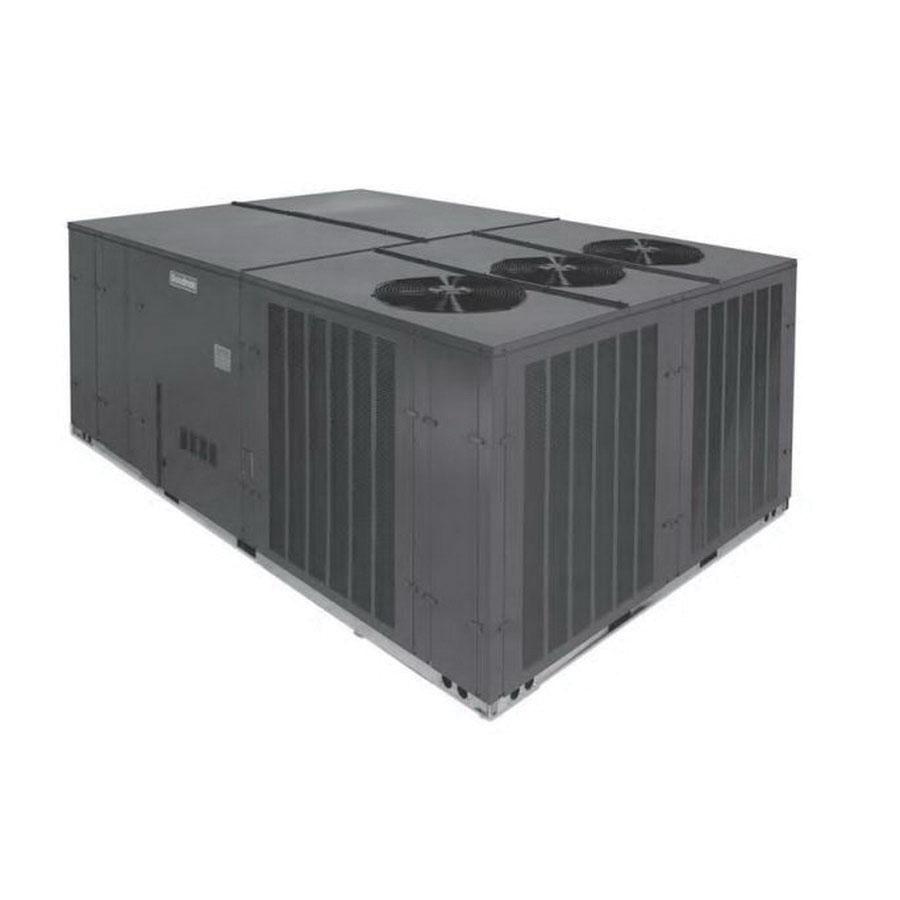

Luxaire® Cooling Air Conditioner Package Unit, Series: Optimum, Model: ZS-15, 15 ton Nominal Capacity, 175000 Btu/hr Gross, 172000 Btu/hr Net Cooling BTU, 575 VAC, 15 kW Wattage, 5 hp Evaporator, 1-1/4 hp Condenser, 1725 rpm Evaporator, 1140 rpm Condenser Rotational Speed, 60 Hz, 3 ph Phase, (2) Scroll Compressor, 4430 cfm, 12.4 IEER, 11 EER Rating, R-410A Refrigerant, 92 dBA Sound Level, Belt Drive Evaporator, Direct Drive Condenser Drive, Evaporator Coil - 15.5 sq-ft Face Area, 14 Fins/in, Condenser Coil - 36 sq-ft Face Area, 18 Fins/in Coil Rating, 1 in FNPT Drain Connection, (5) 18 x 24 x 2 in Filter, Steel, Galvanized, Powder-Painted, 125-1/4 in L x 92 in W x 48-5/8 in H

• Easy to install - Uses copper tube/aluminum fin coils in a convertible packaged cooling and heating line
• Flexibility - Enjoy the flexibility of a single footprint to fit most applications
• Durability - feel confident with built-in protections and certified safeties
• 5 years limited compressor warranty
• 1 year limited parts warranty
• High static blower
• Economizer with power exhaust
• DSC (disconnect switch)
• Stand alone smart equipment
• No sensors
• Standard refrigeration
• Standard cabinet
• Standard throwaway filter
• First generation

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Luxaire_ZW_25C00Q4B1AAA2A1_Specification_Sheet.pdf
