York® 024-24115-018 1046479
  1. pin-int

York® 024-24115-018 1046479

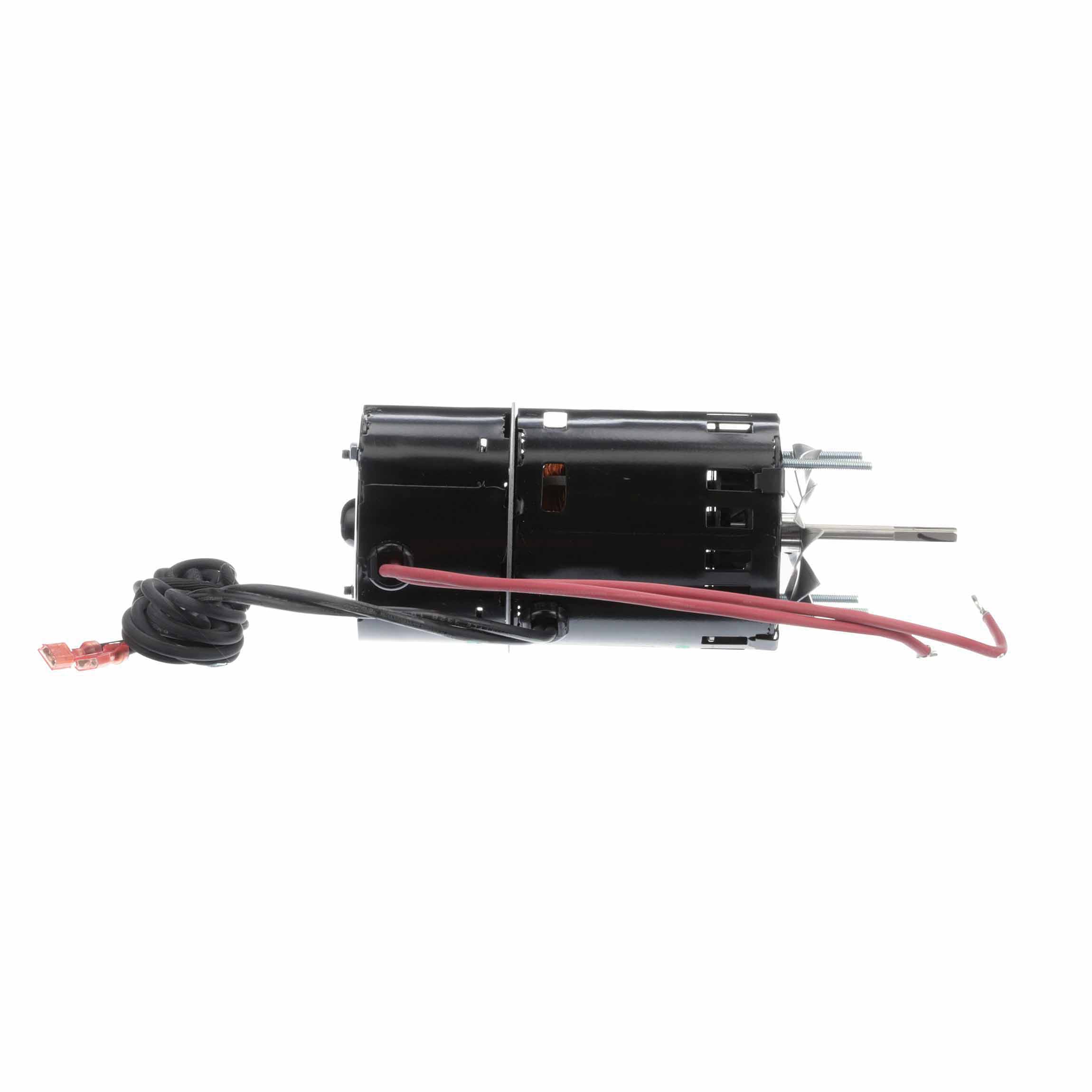

York® 024-24115-018 Ventilator Motor, 208/230 VAC, 0.78 A, 1/40 hp, 3200 rpm Speed, 1 ph -Phase, 60 Hz

  • Manufacturer: Johnson Controls
  • Brand Name: York®
  • Part Number: 1046479
  • MPN: 024-24115-018
  • UPC: 688714095835
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

York® Ventilator Motor, 208/230 VAC, 0.78 A, 1/40 hp, 3200 rpm, 1 ph Phase, 60 Hz, Open Drip-Proof Motor Enclosure, Clockwise Rotation, 1 Speed, Ball Bearing, Vertical Mounting, Stainless Steel, 8.6 in L

Amperage Rating      :      0.78 A
Bearing Type      :      Ball
Dimensions      :      8.6 in L
Frequency Rating      :      60 Hz
HP Rating      :      1/40 hp
Material      :      Stainless Steel
Motor Enclosure Type      :      Open Drip-Proof
Mounting Type      :      Vertical
Number of Speeds      :      1
Phase      :      1 ph
Rotation Type      :      Clockwise
Speed Rating      :      3200 rpm
Voltage Rating      :      208/230 VAC
  • Thermal overload protection
  • Rotation is determined by viewing opposite shaft-end
  • Proof of rotation switch
  • 3.3 in frame motor
