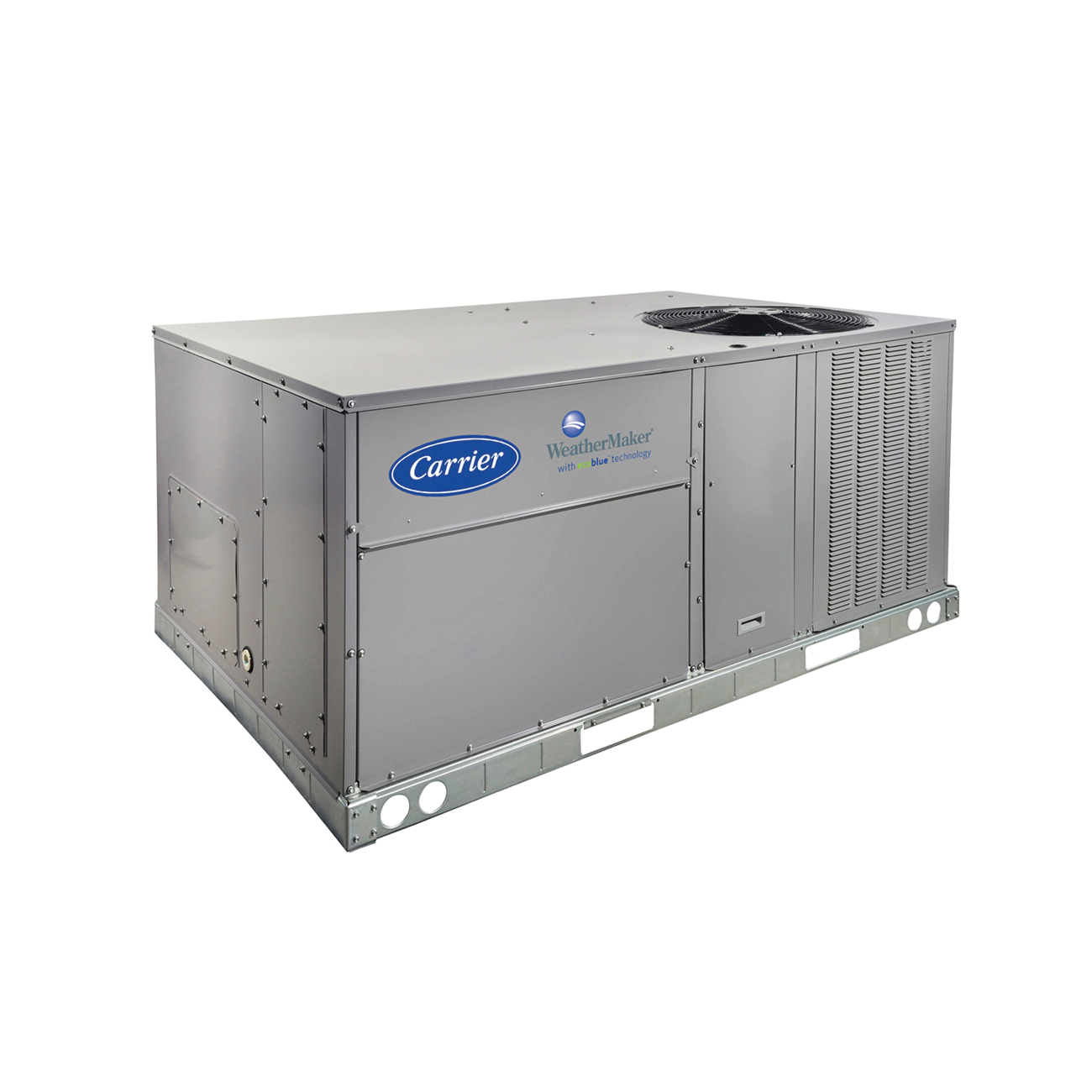

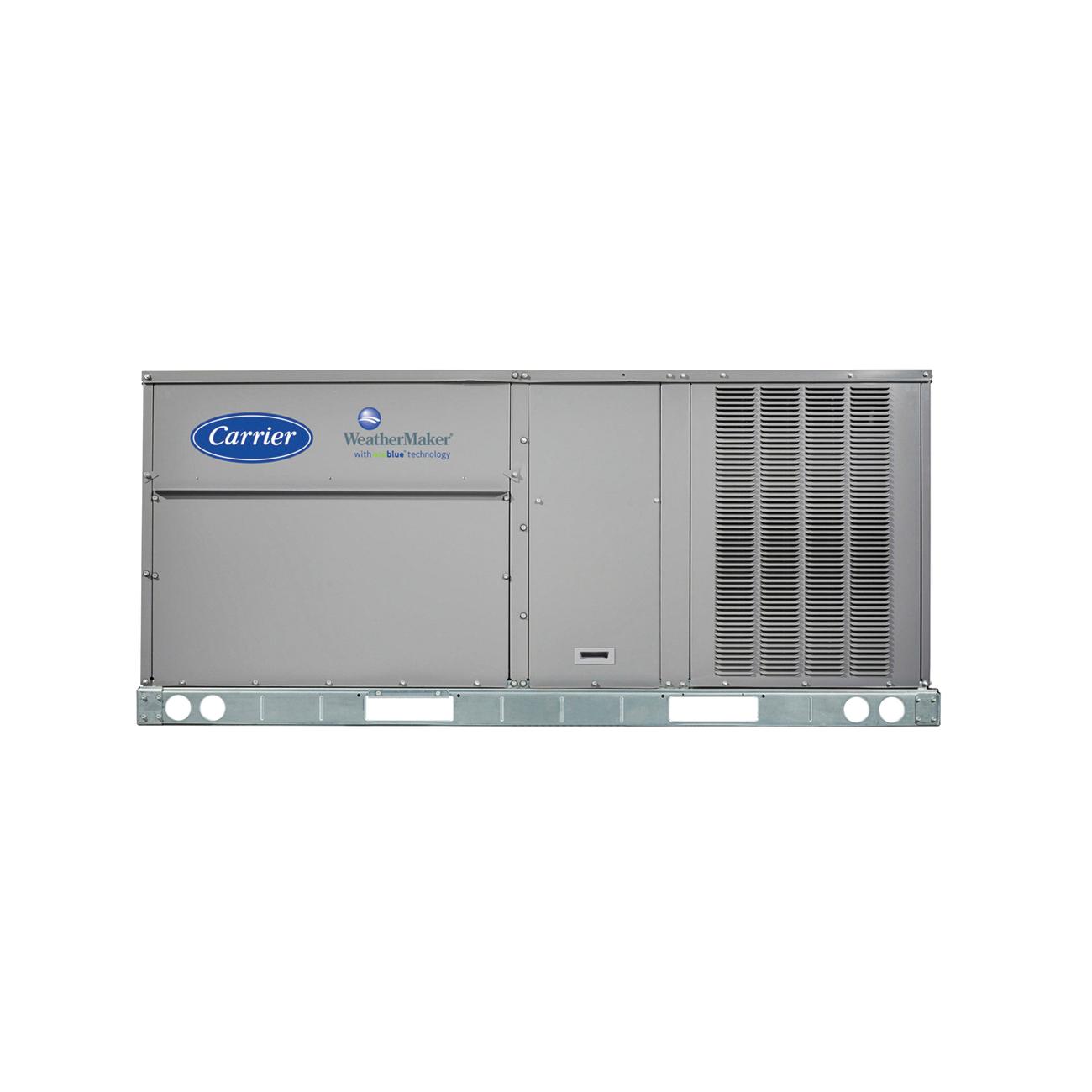

WeatherMaker® 48FCEM07A2A5-0A0A0 1055334
WeatherMaker® FC Series 48FCEM07A2A5-0A0A0 48FC Single Packaged Gas Heat Rooftop Unit With EcoBlue™ Technology, 6 ton
- Manufacturer: Carrier
- Brand Name: WeatherMaker®
- Part Number: 1055334
- MPN: 48FCEM07A2A5-0A0A0
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Exclusive, new EcoBlue™ Technology was designed to improve performance and efficiency while decreasing maintenance and installation costs. The industry's first beltless direct-drive vane axial fan for rooftop units is just one of many technological advances that prove that not all rooftop units are created equal. Other enhancements include a new control board and coil technology, permanently lubricated motor bearings, tool-less filter access doors and more - all available on this multi-efficiency offering.
WeatherMaker® Single Packaged Gas Heat Rooftop Unit, Series: FC Series, Model: 48FC, 110 MBtu/hr Input BTU Rating, 208 to 230 V, 6.4 kW Wattage, 1/4 hp, 1100 rpm Rotational Speed, 60 Hz, 3 ph Phase, Scroll Compressor Type, Horizontal, Vertical, 15 IEER Rating, 11 EER Rating, 6 ton Tonnage, 3 Burners, 2 Stages, R-410A Refrigerant, Roof Curb Mounting, Ducted Vent, Ducted or Ductless, Electronic Direct Spark Ignition, Medium Static Direct Drive, 3/4-14 Connection, NPT Connection, 16 x 16 x 2 in Filter, 45 A Fuse Rating, 80 % Thermal Efficiency, Steel, Baked Enamel-Coated/Galvanized, -40 to 130 deg F, 74-3/8 in L x 46-5/8 in W x 41-3/8 in H
| Compressor Type | : | Scroll |
| Configuration | : | Horizontal, Vertical |
| Connection Size | : | 3/4-14 |
| Connection Type | : | NPT |
| Dimensions | : | 74-3/8 in L x 46-5/8 in W x 41-3/8 in H |
| Drive Type | : | Medium Static Direct |
| EER Rating | : | 11 |
| Filter Size | : | 16 x 16 x 2 in |
| Finish | : | Baked Enamel-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 45 A |
| HP Rating | : | 1/4 hp |
| IEER Rating | : | 15 |
| Ignition Type | : | Electronic Direct Spark |
| Input BTU Rating | : | 110 MBtu/hr |
| Material | : | Steel |
| Model | : | 48FC |
| Mounting Type | : | Roof Curb |
| Number of Burners | : | 3 |
| Number of Stages | : | 2 |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1100 rpm |
| Series | : | FC Series |
| Temperature Rating | : | -40 to 130 deg F |
| Thermal Efficiency | : | 80 % |
| Tonnage | : | 6 ton |
| Vent, Ducted or Ductless | : | Ducted |
| Voltage Rating | : | 208 to 230 V |
| Wattage | : | 6.4 kW |
- New unit control board with intuitive quick fan speed adjustment

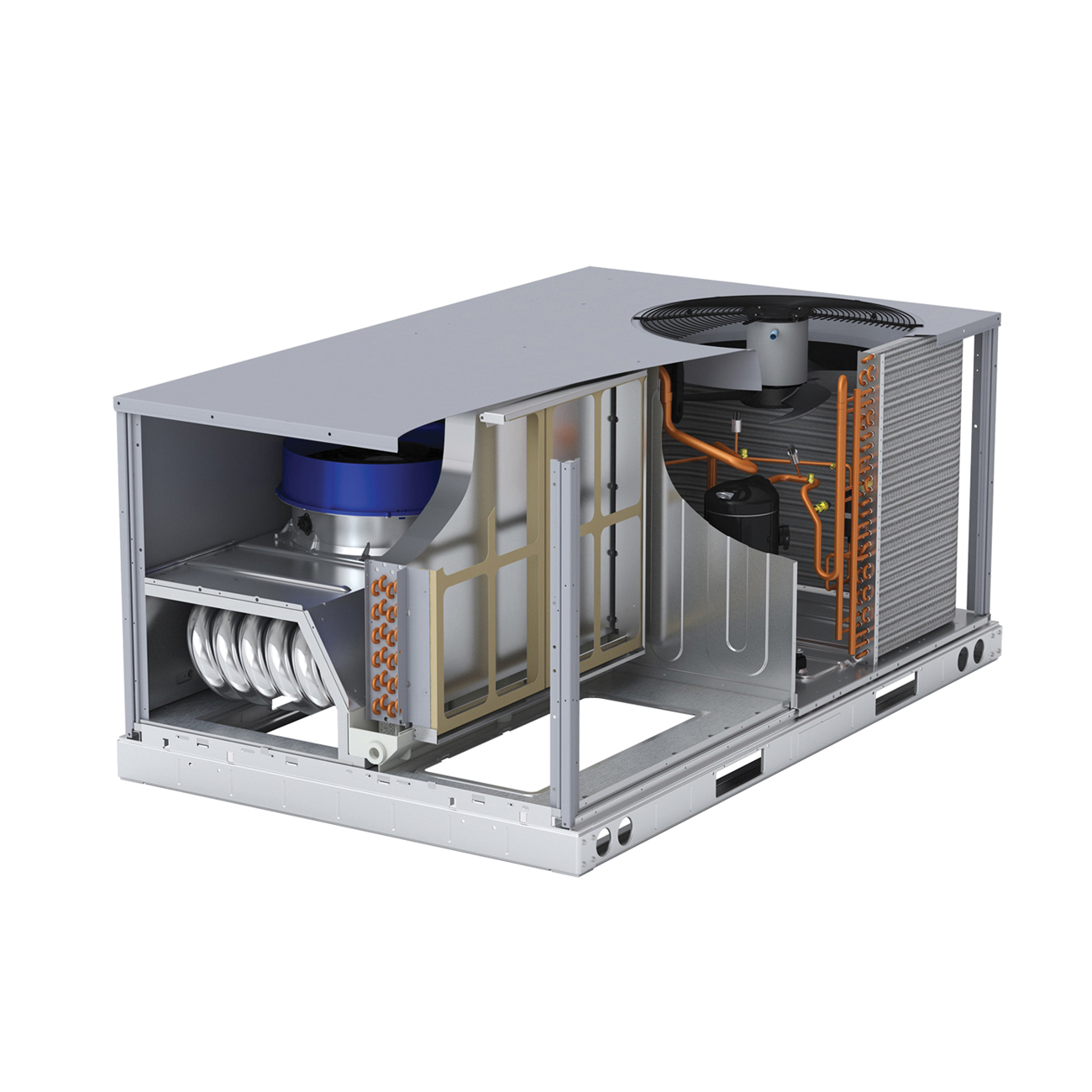

- New direct drive - EcoBlue™ technology indoor fan system uses vane axial fan design and electronically commutated motor
- Cooling operating range up to 115 deg F and down to 40 deg F using winter start kit
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design, side or center drain
- Exclusive IGC solid-state control for on-board diagnostics with LED error code designation and burner control logic
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hr salt spray protection
- New unit control board facilitating simple safety circuit troubleshooting and simplified control box arrangement as well as easy intuitive fan speed adjustment
- Access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Tool-less filter access door
- New direct drive - EcoBlue™ technology indoor fan system uses vane axial fan design and electronically commutated motor with beltless design
- 2 in disposable return air filters
- Scroll compressors with internal line-break overload protection
- 24 V control circuit protected with resettable circuit breaker
- Permanently lubricated direct drive ECM evaporator-fan motor
