tyco® 775701155 1029658

The tyco® Series TY-B, 5.6 K-factor, Upright (TY315) and pendent (TY325) sprinklers described in this data sheet are standard response, standard coverage, decorative 5 mm glass bulb type spray sprinklers designed for use in light, ordinary or extra hazard, commercial occupancies such as banks, hotels, shopping malls, factories, refineries and chemical plants. The recessed version of the Series TY-B pendent sprinkler, where applicable, is intended for use in areas with a finished ceiling. It uses a two-piece Style 10 (1/2 in NPT) or Style 40 (3/4 in NPT) Recessed Escutcheon. The recessed escutcheon provides 1/2 in of recessed adjustment or up to 3/4 in of total adjustment from the flush pendent position. The adjustment provided by the recessed escutcheon reduces the accuracy to which the fixed pipe drops to the sprinklers must be cut.

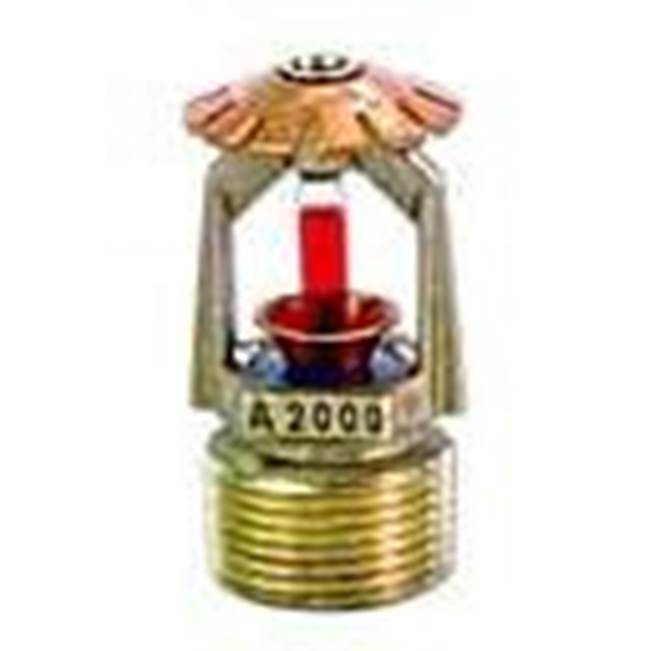

tyco® Standard Response Sprinkler, Series: TY-B, Upright Sprinkler Head, 1/2 in Thread, NPT Thread, 5.6 K Factor, 250 psi, 155 deg F, Bronze, Natural Brass, 2 in Height

• All hazard
• Discharges a hemispherical water spray pattern in the area beneath the sprinkler
• Small frame, narrow profile bulb

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/tyco_775701155_Specification_Sheet.pdf
