This heat pump boasts cooling efficiencies of up to 16 SEER and features a 1-stage scroll compressor for electric heating and cooling. Pair it with a compatible gas furnace and thermostat to gain dual fuel heating efficiency in colder climates. You can also enjoy the convenience of remote access and the assurance of best levels of performance and comfort management when you pair it with a complete observer communicating system, including the energy-smart observer communicating wall control with Wi-Fi capability.

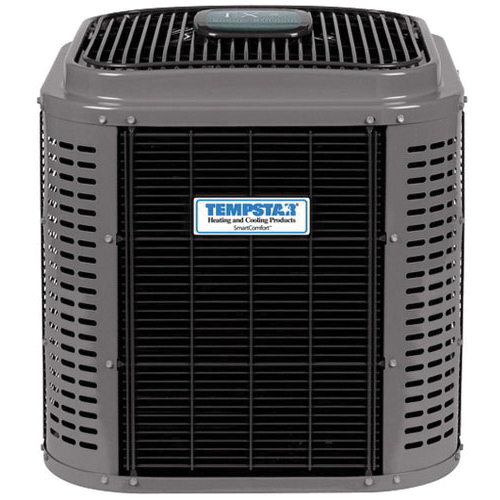

TEMPSTAR® Heat Pump, TSH6 Series, Model: TXC 5500, 208 to 230 V, 1.3 A, 1/4 hp, 60 Hz, 1 ph Phase, 810 rpm Rotational Speed, 48000 Btu/hr Cooling/Heating, 4046 cfm, 13 EER Rating, 16 SEER, 9 HSPF, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 45 A Fuse Rating, 20.1 sq-ft Face Area, 20 FPI Coil, Propeller Direct Drive, Tonnage: 4 ton, 71 dBA Sound Level, 1 Stages, Steel, Finish: Baked-On Powder-Coated/Galvanized, Gray, 31-3/16 in H x 31-3/16 in W x 28-11/16 in D
| Amperage Rating | : | 1.3 A |
| BTU Rating | : | 48000 Btu/hr Cooling/Heating |
| CFM Rating | : | 4046 cfm |
| Coil Rating | : | 20.1 sq-ft Face Area, 20 FPI |
| Color | : | Gray |
| Compressor Type | : | Scroll |
| Dimensions | : | 31-3/16 in H x 31-3/16 in W x 28-11/16 in D |
| Drive Type | : | Propeller Direct |
| EER Rating | : | 13 |
| Finish | : | Baked-On Powder-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 45 A |
| HP Rating | : | 1/4 hp |
| HSPF Rating | : | 9 |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Model | : | TXC 5500 |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 810 rpm |
| SEER Rating | : | 16 |
| Series | : | TSH6 Series |
| Sound Level | : | 71 dBA |
| Tonnage | : | 4 ton |
| Voltage Rating | : | 208 to 230 V |
- One-stage heat pump with observer communicating control system
- Scroll compressors on all models
- Suction line accumulator factory installed, bi-flow filter drier included for field installation
- Integrated solid state control with time temperature defrost, external high and low refrigerant service ports
- Copper tube/post-painted (black) aluminum fin coil
- Communicating, self-configuring operation when used with observer wall control (TSTAT0201CW)
- Outdoor temperature sensor factory installed, compressor sound blanket standard
- Isolation compressor grommets
- Text based diagnostics with observer communicating wall control, only two-control wires required from communicating indoor unit to condenser, external high and low refrigerant service ports
- Easy-access service valves on all model, innovative control box design
- High and low pressure switches
- Only two-screws to access control panel
- Factory charged with R-410A refrigerant
- High gloss, baked-on powder-coated finish over galvanized steel, post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 3/8 in grille spacing for extra protection
- Corner posts for extra strength and style
- Coil guard grille
