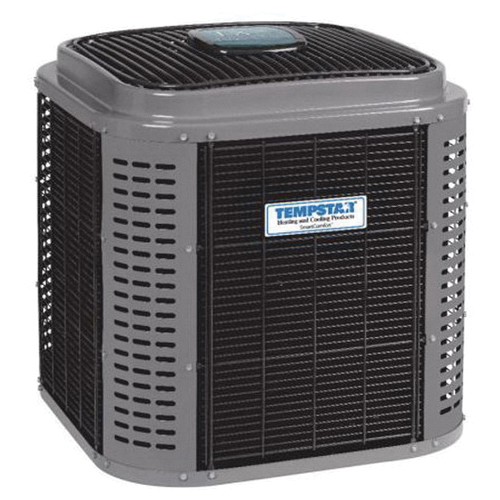

TEMPSTAR® Heat Pump, TSH4 Series, Model: TXC 5500, 208 to 230 V, 1.52 A, 1/4 hp, 60 Hz, 1 ph Phase, 800 rpm Rotational Speed, 57000 Btu/hr Cooling, 60000 Btu/hr Heating, 4470 cfm, 11.7 EER Rating, 14 SEER, 8.2 HSPF, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 50 A Fuse Rating, Propeller Direct Drive, Tonnage: 5 ton, 73 dBA Sound Level, 1 Stages, Steel, Finish: Baked-On Powder-Coated/Galvanized, 32-1/8 in H x 31-3/16 in W x 31-3/16 in D
| Amperage Rating | : | 1.52 A |
| BTU Rating | : | 57000 Btu/hr Cooling, 60000 Btu/hr Heating |
| CFM Rating | : | 4470 cfm |
| Compressor Type | : | Scroll |
| Dimensions | : | 32-1/8 in H x 31-3/16 in W x 31-3/16 in D |
| Drive Type | : | Propeller Direct |
| EER Rating | : | 11.7 |
| Finish | : | Baked-On Powder-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HP Rating | : | 1/4 hp |
| HSPF Rating | : | 8.2 |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Model | : | TXC 5500 |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 800 rpm |
| SEER Rating | : | 14 |
| Series | : | TSH4 Series |
| Sound Level | : | 73 dBA |
| Tonnage | : | 5 ton |
| Voltage Rating | : | 208 to 230 V |
- One-stage heat pump with observer communicating control system
- Copeland™ scroll compressors on all models
- Suction line accumulator factory installed, bi-flow filter drier included for field installation
- Integrated solid state control with time temperature defrost, external high and low refrigerant service ports
- Copper tube/aluminum fin coils
- Communicating, self-configuring operation when used with observer wall control (TSTAT0201CW)
- Outdoor temperature sensor factory installed, compressor sound blanket standard
- Isolation compressor grommets
- Text based diagnostics with observer communicating wall control, only two-control wires required from communicating indoor unit to condenser, external high and low refrigerant service ports
- Easy-access service valves on all model, innovative control box design
- High/low pressure switches
- Only two-screws to access control panel
- Factory charged with R-410A refrigerant
- High gloss, baked-on powder-coated finish over galvanized steel, post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 3/8 in grille spacing for extra protection
- Corner posts for extra strength and style
- TXV metering device
