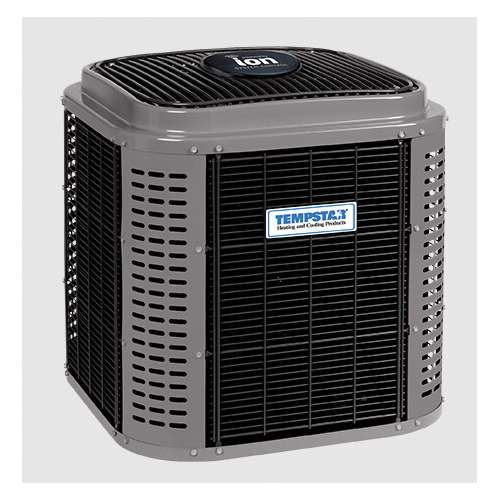

TEMPSTAR® Heat Pump, TCH6 Series, Model: TXT+, 208 to 230 V, 1.5 A, 1/4 hp, 60 Hz, 1 ph Phase, 825 rpm Rotational Speed, 60000 Btu/hr Cooling/Heating, 5000 cfm, 12.5 EER Rating, 16 SEER, 9.1 HSPF, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 60 A Fuse Rating, 30.18 sq-ft Face Area, 20 FPI Coil, Tonnage: 5 ton, 72 dBA High Stage, 72 dBA Low Stage Sound Level, 2 Stages, Steel, Finish: Baked-On Powder-Coated/Galvanized, 47-1/16 in H x 35 in W x 35 in D
| Amperage Rating | : | 1.5 A |
| BTU Rating | : | 60000 Btu/hr Cooling/Heating |
| CFM Rating | : | 5000 cfm |
| Coil Rating | : | 30.18 sq-ft Face Area, 20 FPI |
| Compressor Type | : | Scroll |
| Dimensions | : | 47-1/16 in H x 35 in W x 35 in D |
| EER Rating | : | 12.5 |
| Finish | : | Baked-On Powder-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 60 A |
| HP Rating | : | 1/4 hp |
| HSPF Rating | : | 9.1 |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Model | : | TXT+ |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 825 rpm |
| SEER Rating | : | 16 |
| Series | : | TCH6 Series |
| Sound Level | : | 72 dBA High Stage, 72 dBA Low Stage |
| Tonnage | : | 5 ton |
| Voltage Rating | : | 208 to 230 V |
- Two-stage heat pump with observer communicating control system
- Copeland™ scroll UltraTech™ compressors on all models
- Crankcase heater factory installed
- Suction line accumulator factory installed, bi-flow filter drier included for field installation
- Bi-flow filter drier included for field installation
- Integrated solid state control with time temperature defrost
- High/low pressure switches, discharge gas thermostat
- Copper tube/aluminum fin coils
- Self-configuring installation capabilities with observer communicating wall control, compact ECM fan motor driven by integrated inverter control, outdoor temperature sensor factory installed
- Outdoor temperature sensor factory installed, ball bearing PSC fan motors on all models
- High performance compressor sound shield standard, isolation compressor grommets
- Text based diagnostics with observer communicating wall control, only two-control wires required from communicating indoor unit to condenser, external high and low refrigerant service ports
- Only two-control wires required from communicating indoor unit to condenser
- Easy-access service valves on all model, innovative control box design
- External high and low refrigerant service ports, only two-screws to access control panel
- Factory charged with R-410A refrigerant
- High gloss, baked-on powder-coated finish over galvanized steel, post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 3/8 in grille spacing for extra protection
- Corner posts for extra strength and style
