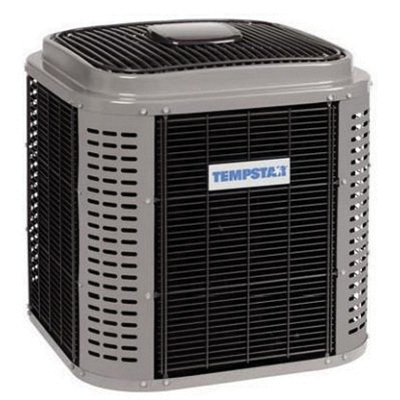

TEMPSTAR® Heat Pump, T4H4 Series, Model: TX 5400, 208 to 230 V, 0.5 A, 1/12 hp, 60 Hz, 1 ph Phase, 799 to 697 rpm Rotational Speed, 24000 Btu/hr Cooling/Heating, 3200 cfm, 14 SEER, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 25 A Fuse Rating, 25.15 sq-ft Face Area, 20 FPI Coil, Tonnage: 2 ton, 75 dBA High Speed Fan, 74 dBA Low Speed Fan Sound Level, Steel, Finish: Baked-On Powder-Coated/Galvanized, 40-1/4 in H x 35 in W x 35 in D
| Amperage Rating | : | 0.5 A |
| BTU Rating | : | 24000 Btu/hr Cooling/Heating |
| CFM Rating | : | 3200 cfm |
| Coil Rating | : | 25.15 sq-ft Face Area, 20 FPI |
| Compressor Type | : | Scroll |
| Dimensions | : | 40-1/4 in H x 35 in W x 35 in D |
| Finish | : | Baked-On Powder-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A |
| HP Rating | : | 1/12 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Model | : | TX 5400 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 799 to 697 rpm |
| SEER Rating | : | 14 |
| Series | : | T4H4 Series |
| Sound Level | : | 75 dBA High Speed Fan, 74 dBA Low Speed Fan |
| Tonnage | : | 2 ton |
| Voltage Rating | : | 208 to 230 V |
- Copeland™ scroll compressors on all models
- Suction line accumulator factory installed, bi-flow filter drier included for field installation
- Bi-flow filter drier included for field installation
- Integrated solid state control with time temperature defrost
- High/low pressure switches
- Copper tube/aluminum fin coils
- Two-speed fan motors factory wired on all models
- Compressor sound jacket standard
- Comfort alert diagnostics device on all models
- Easy-access service valves on all model, innovative control box design
- External high and low refrigerant service ports, fan motor in-line disconnect plug
- Only two-screws to access control panel
- Factory charged with R-410A refrigerant
- High gloss, baked-on powder-coated finish over galvanized steel, post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 3/8 in grille spacing for extra protection
- Corner posts for extra strength and style
