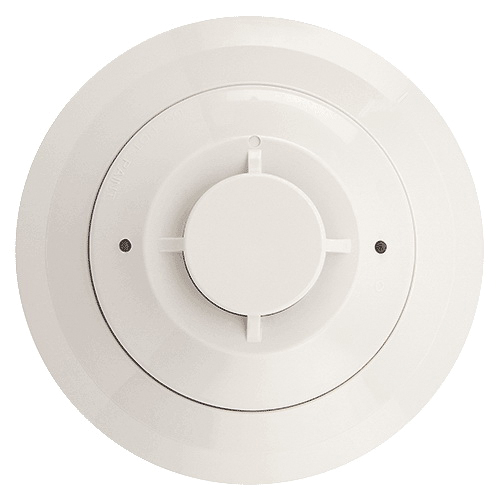

System Sensor® InnovairFlex Plug-In Detector, Photoelectric, 24 VAC/VDC or 120 VAC, 10-93% RH Non-Condensing Humidity, 0 to 4000 fpm Air Duct Velocity, 75 mA Alarm Current, -4 to 158 deg F, 4.1 in Width, 2 in Height
| Air Duct Velocity | : | 0 to 4000 fpm |
| Alarm Current | : | 75 mA |
| Detection Method | : | Photoelectric |
| Height | : | 2 in |
| Humidity Rating | : | 10-93% RH Non-Condensing |
| Power Source | : | 24 VAC/VDC or 120 VAC |
| Temperature Rating | : | -4 to 158 deg F |
| Width | : | 4.1 in |
- Low standby current
- Two LEDs blink in standby
- Detector head plugs easily into base
- Field sensitivity metering of detector to meet the requirements of NFPA 72 with the use of RTS2/RTS2-AOS and SENS-RDR
- Designed for mounting on a standard electrical box
- SEMS screws for easy wiring and positive wire retention
- Removable cover and insect screen for field cleaning
- Remote push button test/reset, LEDs provide visual indications
- Onboard supervisory and alarm relays
- Accepts 24 or 120 V supply voltage
- Interconnect up to 100 units for common functions
- Built-in test switch
- For use with the D4P120 and B210LP for pendant mount applications
