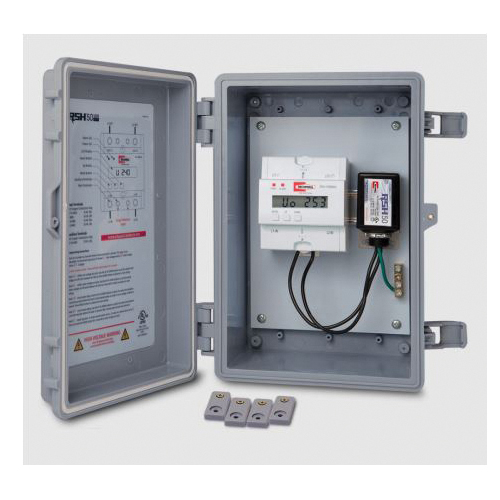

The RSH-50 VRM kit combines the VRM60A and the RSH-50 in a NEMA 3R enclosure, for an all-in-one equipment solution. The RSH-50 uses gas discharge tube technology along with thermally fused metal oxide varistors for ultimate protection.
RSH™ Surge Protector, 120/240 V, 60 A, 50 kA Maximum Discharge, 10 kA Normal Discharge Current, 200 kA Short Circuit, For Use With: 1 ph, 120/240 V HVACR Equipment's
| Amperage Rating | : | 60 A |
| Maximum Discharge Current | : | 50 kA |
| Normal Discharge Current | : | 10 kA |
| Short Circuit Rating | : | 200 kA |
| Suitable For Use With | : | 1 ph, 120/240 V HVACR Equipment's |
| Voltage Rating | : | 120/240 V |
- RSH-50 surge protector and voltage range monitor inside a NEMA 3R/IP66 enclosure
- Over under voltage protection with adjustable auto cut-off and auto restore delay time, over under voltage cut-off delay can be adjusted from 0.5 to 60 sec, load restore delay adjustable from 1 to 600 sec 120/240 V 1 ph
- Magnetic latching relays for maximum reliability
- Large easy to read LCD digital display with dual red and green LED diagnostics indicators
- Easy set-up, field programmable, no laptop or programming tool required
