Rosemount 8800DF080SA3E1D1KBR30Q4 1018415
  1. pin-int

Rosemount 8800DF080SA3E1D1KBR30Q4 1018415

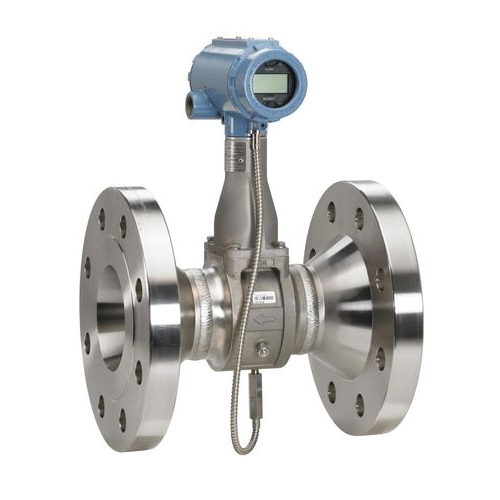

Rosemount 8800DF080SA3E1D1KBR30Q4 Vortex Flowmeter, 1/2 in Connection, Outputs: 4 to 20 mA, +/-0.7 % Accuracy

  • Manufacturer: Emerson Electric Co
  • Brand Name: Rosemount
  • Part Number: 1018415
  • MPN: 8800DF080SA3E1D1KBR30Q4
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Rosemount 8800 Series VORTEX flow meters offer world class reliability with a gasket-free, non-clog meter body that eliminates potential leak points, resulting in maximum process availability and fewer unscheduled shutdowns. The unique design of Emerson Electric Co Rosemount 8800 VORTEX flow meters features isolated sensors that eliminate the need to break process seals for flow and temperature sensor replacement.

Rosemount Vortex Flowmeter, 8800 Series, Model: 8800D, 18 mA, 9 to 32 V, 1/2 in Connection, NPT End, 4 to 20 mA Outputs, +/-0.7 % Accuracy, LCD Display, 1 W Power Consumption, 316 Stainless Steel Wetted, Aluminum Body, -330 to 800 deg F, Additional Information: 8 in Line

Accuracy      :      +/-0.7 %
Additional Information      :      8 in Line
Amperage Rating      :      18 mA
Body Material      :      Aluminum
Connection Size      :      1/2 in
Display Type      :      LCD
End Type      :      NPT
Model      :      8800D
Outputs      :      4 to 20 mA
Power Consumption      :      1 W
Series      :      8800 Series
Temperature Rating      :      -330 to 800 deg F
Voltage Rating      :      9 to 32 V
Wetted Material      :      316 Stainless Steel
  • An isolated sensor allows for inline replacement without breaking the process seal
  • Increase plant availability and eliminate potential leak points with a unique gasket-free meter body design
  • Eliminate downtime and maintenance costs associated with plugged impulse lines with a non-clog meter body design
  • Achieve vibration immunity with a mass balanced sensor and adaptive digital signal processing with visual filtering
  • A standard internal signal generator included in every meter simplifies electronics verification
  • All meters arrive pre-configured and hydrostatically tested, making them ready and easy to install

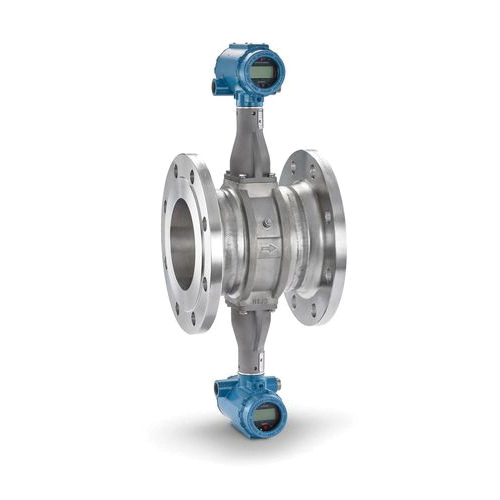

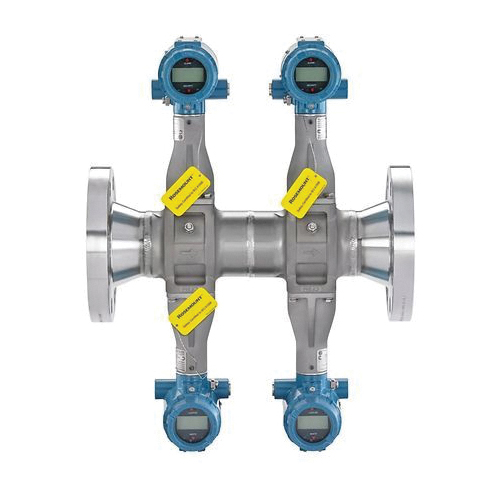

  • Simplify SIS compliance with available dual and quad VORTEX flow meters
  • Detect liquid to gas phase change using smart fluid diagnostics
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Rosemount_8800DF015SA3E1D1KBM5R50Q4Q8Q76_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Rosemount_8800DF015SA3E1D1KBM5R50Q4Q8Q76_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Rosemount_8800DF015SA3E1D1KBM5R50Q4Q8Q76_Specification_Sheet.pdf
