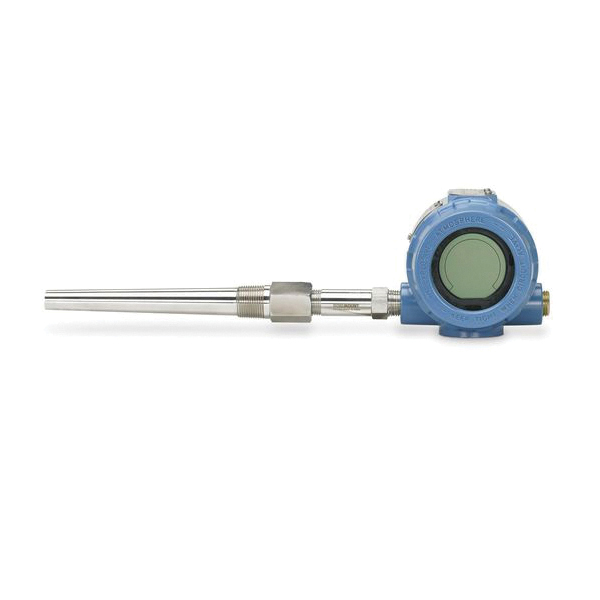

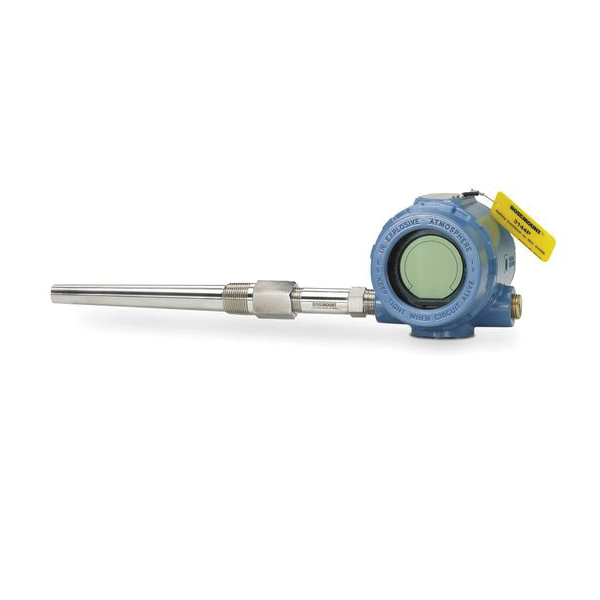

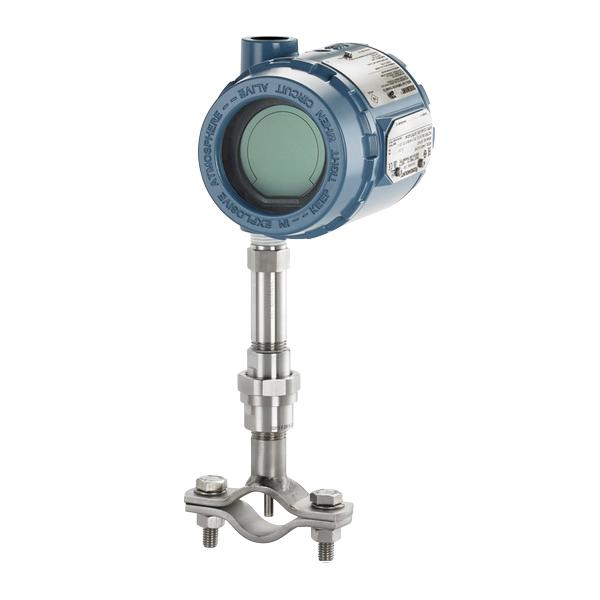

The Rosemount 3144P temperature transmitter provides industry leading accuracy, stability and reliability for your temperature measurements. It features a dual compartment housing to ensure reliability and advanced diagnostics to keep your measurement point up and running. When combined with Rosemount X-well™ technology and the Rosemount 0085 pipe clamp sensor, this transmitter can provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration.
Rosemount Temperature Transmitter, 3144P Series, -328 to 1193 deg F Range, 4 to 20 mA Outputs, NPT Connection, +/-0.12 deg C Accuracy, IP66, IP68, NEMA 4X Enclosure, 0 to 99 % Humidity Rating, 250 Ohm, 1100 Ohm Loop Resistance, U-Bracket Mounting, 5 s Response, +/-0.25 % Stability, 12 to 42.4 V, Aluminum, Finish: Polyurethane, -40 to 185 deg F, 5.12 in L x 4.4 in W x 4.37 in H, Additional Information: LCD Display, 1/2-14 Conduit Entry
| Accuracy | : | +/-0.12 deg C |
| Additional Information | : | LCD Display, 1/2-14 Conduit Entry |
| Connection Type | : | NPT |
| Dimensions | : | 5.12 in L x 4.4 in W x 4.37 in H |
| Enclosure Type | : | IP66, IP68, NEMA 4X |
| Finish | : | Polyurethane |
| Humidity Rating | : | 0 to 99 % |
| Loop Resistance | : | 250 Ohm, 1100 Ohm |
| Material | : | Aluminum |
| Mounting Type | : | U-Bracket |
| Outputs | : | 4 to 20 mA |
| Range | : | -328 to 1193 deg F |
| Response Time | : | 5 s |
| Series | : | 3144P Series |
| Stability | : | +/-0.25 % |
| Temperature Rating | : | -40 to 185 deg F |
| Voltage Rating | : | 12 to 42.4 V |
- Industry leading accuracy and reliability for best performance in critical control and safety application
- Transmitter sensor matching improves measurement accuracy up to 75%
- 5 years long term stability extends calibration intervals to reduce trips to the field
- Rosemount X-well™ technology measures temperature without a process penetration for reduced design, installation and maintenance costs
- Dual compartment housing provides superior protection in harsh environments
- Hot Backup™ capability and sensor drift alert utilizing dual sensors ensure measurement integrity
- Thermocouple degradation diagnostic monitors thermocouple health to detect degradation before failure
- Minimum and maximum temperature tracking allow monitoring of temperature extremes for easy troubleshooting
- Transmitter supports multiple protocols for integration in many host environments across many industries
- Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting
