Rosemount 3051TG3A2B21AS5BEKDQ4Q8M5P1 1108400

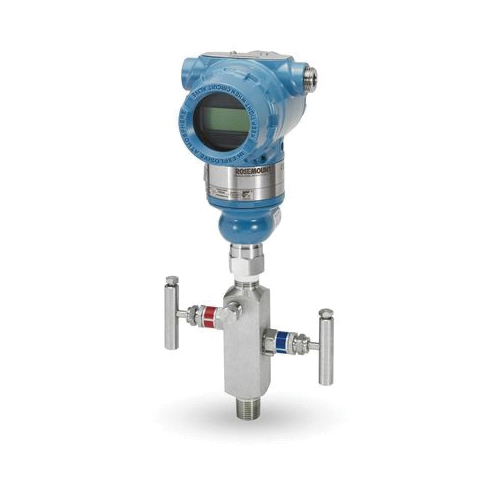

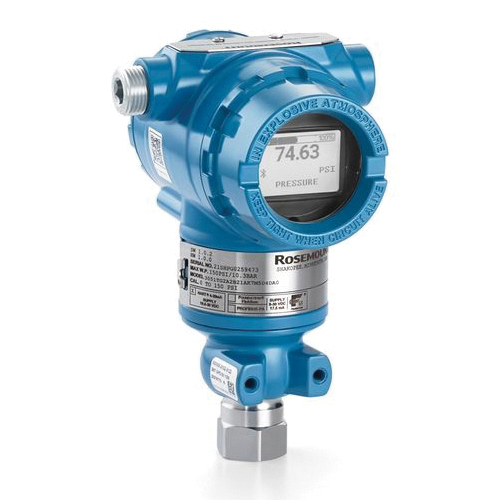

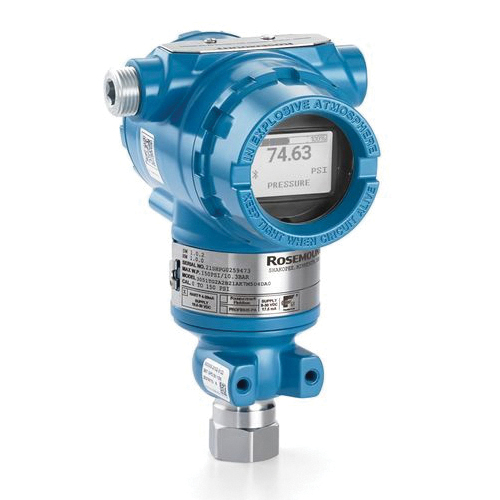

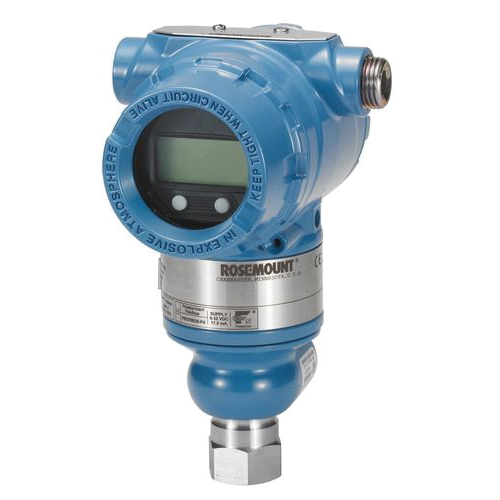

Rosemount 3051TG3A2B21AS5BEKDQ4Q8M5P1 In-Line Gauge Pressure Transmitter, FNPT Connection, 20000 psi Pressure

  • Manufacturer: Emerson Electric Co
  • Brand Name: Rosemount
  • Part Number: 1108400
  • MPN: 3051TG3A2B21AS5BEKDQ4Q8M5P1
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Confidently measure pressure and level with the Rosemount 3051 in-line pressure transmitter. Engineered for 10 years installed stability and 0.04% of span accuracy, this industry leading pressure transmitter provides you with the information necessary to run, control and monitor processes. Available with a graphical, back-lit display, Bluetooth® connectivity and enhanced software capabilities designed to access the data you need faster than ever before.

Rosemount In-Line Gauge Pressure Transmitter, 3051 Series, -14.7 to 800 psi Range, 4 to 20 mA Outputs, FNPT Connection, 0.04 % Accuracy, 20000 psi, IP65, IP66, IP68, NEMA 4X Enclosure, 0 to 100 % Humidity Rating, 250 Ohm Loop Resistance, 85 ms Response, +/-0.2% of URL per 10 years Stability, 10.5 to 42.4 V, Aluminum, 7.22 in H x 4.29 in W, -40 to 185 deg F

Accuracy      :      0.04 %
Connection Type      :      FNPT
Dimensions      :      7.22 in H x 4.29 in W
Enclosure Type      :      IP65, IP66, IP68, NEMA 4X
Humidity Rating      :      0 to 100 %
Loop Resistance      :      250 Ohm
Material      :      Aluminum
Outputs      :      4 to 20 mA
Pressure Rating      :      20000 psi
Range      :      -14.7 to 800 psi
Response Time      :      85 ms
Series      :      3051 Series
Stability      :      +/-0.2% of URL per 10 years
Temperature Rating      :      -40 to 185 deg F
Voltage Rating      :      10.5 to 42.4 V
  • In-line gage and absolute pressure measurements support up to 20000 psi for pressure or level solutions
  • Application specific configuration allow you to transform your pressure transmitter into a level transmitter with volume calculations
  • Complete pressure or level assemblies are leak tested and calibrated to reduce leak points up to 70% and simplify installation
  • 10 years installed stability and 150:1 range down produce reliable measurements and wide application flexibility
  • Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
  • The graphical, back-lit display allow for easy operation in 8 different languages in all lighting conditions
  • Loop integrity and plugged impulse line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
  • Quick-service buttons offer built-in configuration buttons for streamlined commissioning
  • SIL 2/3 certified to IEC 61508 (via third party) and prior use certificate of FMEDA data for safety installations
