Rosemount 3051SFC1CS040N065T32JA1A3Q4E5M5 1118377

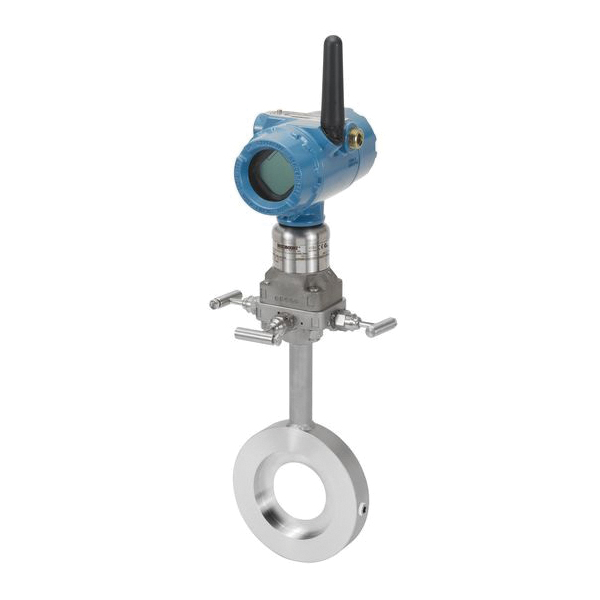

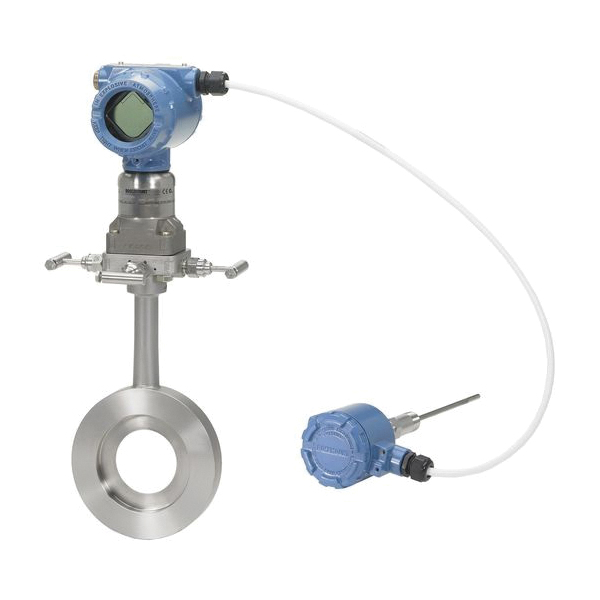

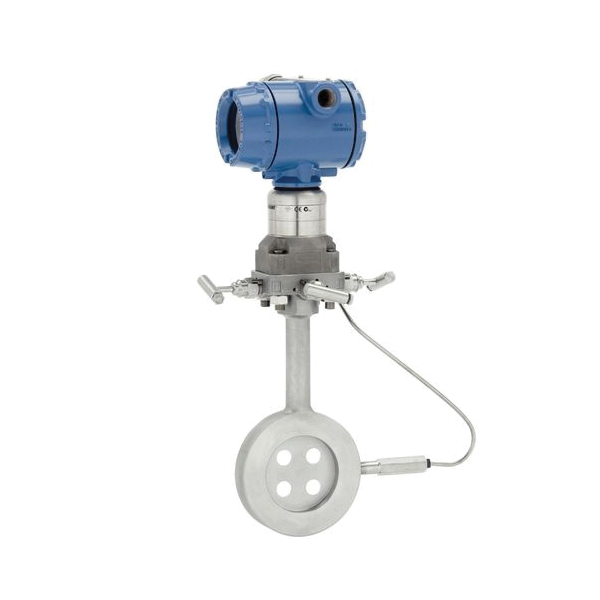

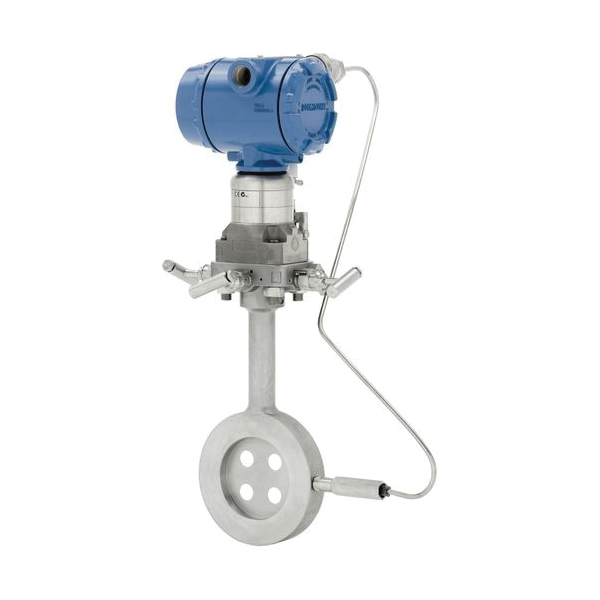

Featuring multi-variable measurements in a single device, the Rosemount 3051SFC compact orifice flow meter delivers accurate flow measurements. Built with either a compact orifice plate, a patented 4-hole conditioning plate or averaging pitot tube, this flow meter provides measurements for closed loop control, general purpose monitoring and custody transfer applications. Available in line sizes up to 12 in (300 mm), this primary element is designed for gas, liquid and steam service and operates well in harsh process conditions. This device is also engineered with built-in flow calculations for fully compensated mass flow measurements and is offered with multiple communication protocols including WirelessHART®.

Rosemount Compact Flow Meter, 3051S Series, -14.2 to 800 psig, 4 to 20 mA Outputs, +/-0.04 % Accuracy, LCD Display, Stainless Steel Body, Additional Information: 4 in Line, 0.65 Beta Ratio, Integral RTD Temperature Measurement, Direct-Mount, Integral Three-Valve Manifold, 0 to 621.6 mbar Differential Pressure, Aluminum Plantweb Housing

• Designed with built-in flow calculations for direct reporting of fully compensated mass flow
• Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues
• Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations
• Ultra for flow performance class enables optimized flow measurement with a +/-0.04% of reading accuracy
• Flowmeters come fully configured, leak tested and ready to install right out of the box for fast installation
• Flowmeter technology eliminates unnecessary pipe penetrations for an integrated, trouble-free solution
• Primary element includes optional self-centering mechanism to simplify installation
• Any choice between the compact pitot tube, patented four-hole orifice plate or the standard ASME/ISO corner tap orifice fits between raised face flanges for simple installation
• WirelessHART® technology is secure, cost effective and delivers >99% data reliability without the cost of wiring
• SmartPower™ module provides up to 10 years maintenance-free operation and field replacement without transmitter removal
• Fully compensated mass and energy flow calculations differential and static pressures with temperature
• Calibration certificate for transmitter
• USA explosion-proof, dust ignition-proof
