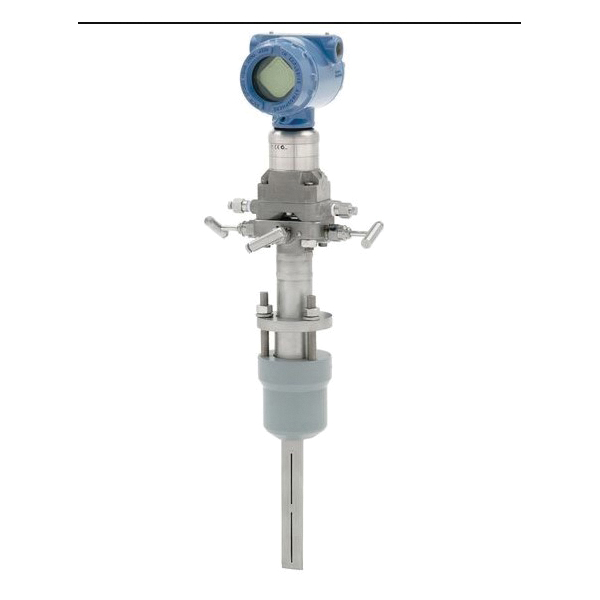

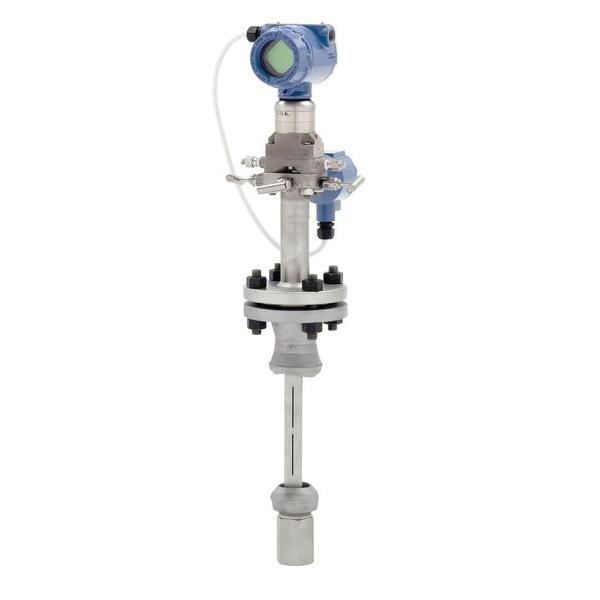

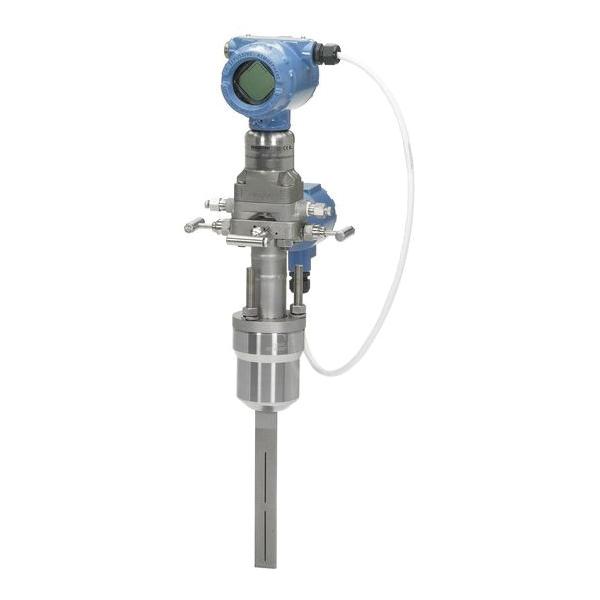

Rosemount 3051SFA2S100CCHPS2T100072DA1A5Q8J1G6Q4KDM5F2A0078 1108379

The Rosemount 3051SFA annubar flow meter is a no-equal solution with a patented, averaging pitot tube that delivers superior measurement accuracy over a wide flow range. Its patented T-shaped sensor is engineered with an integrated thermowell, capable of obtaining measurements via a single pipe penetration while maintaining a small profile in the pipe to reduce permanent pressure loss and increase energy savings. This flow meter is also engineered with built-in flow calculations for fully compensated mass flow measurements and is offered with multiple communication protocols including WirelessHART®.

Rosemount Flow Meter, 0 to 621.60 mbar, 4 to 20 mA Outputs, 316 Stainless Steel/C-276 Alloy Wetted, Up to 1000 in-WC, Up to 3626 psia, Up to 3626 psig Pressure Adjustment, Aluminum/Carbon Steel Body, Additional Information: 1/2 in Connection Size, 1/2-14 NPT Conduit Entry, Horizontal Piping Orientation, LCD Display, Pak-Lok, Steam, 10 in Line, 316 Stainless Steel Sensor, 6 to 96 in Sensor, 0 to 55.16 bar Static Pressure, OS and Y Gate Valves, Stainless Steel, Remote Mounting

• Designed with built-in flow calculations for direct reporting of fully compensated mass flow
• Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues
• Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations
• Ultra for flow performance class enables optimized flow measurement with a +/-0.04% of reading accuracy
• T-shape Annubar design features very low permanent pressure loss
• Integral thermowell of sensor adds process temperature measurement without additional pipe penetrations
• All welded, SuperModule™ design offers industry leading accuracy in harsh environments and applications
• Flowmeters come fully configured, leak tested and ready to install right out of the box for fast installation
• Sensor stagnation zone positioned to reduce noise, measurement inaccuracies and keeps particulates from clogging

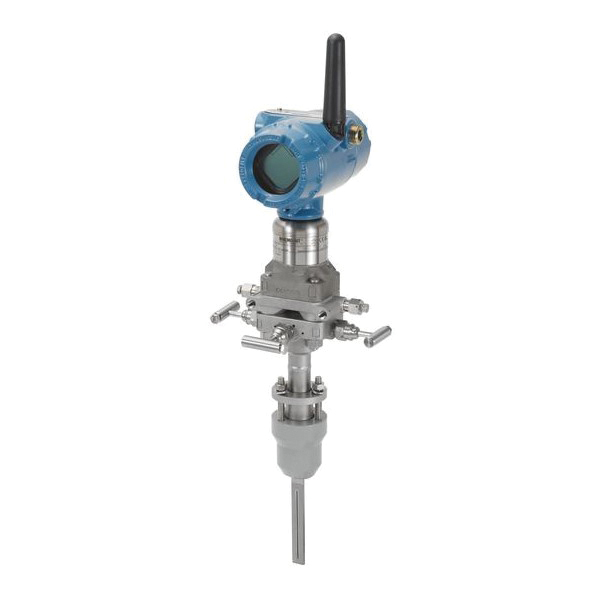

• WirelessHART® technology is secure, cost effective and delivers >99% data reliability without the cost of wiring
• SmartPower™ module provides up to 10 years maintenance-free operation and field replacement without transmitter removal

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Rosemount_3051SFC1CS060N065T33JA1A3TQ4Q8KBM5DOE7003_Specification_Sheet.pdf
