Rosemount 3051SFA1S080CCHPS1T100T32DA1A3Q4E5M5 1058420

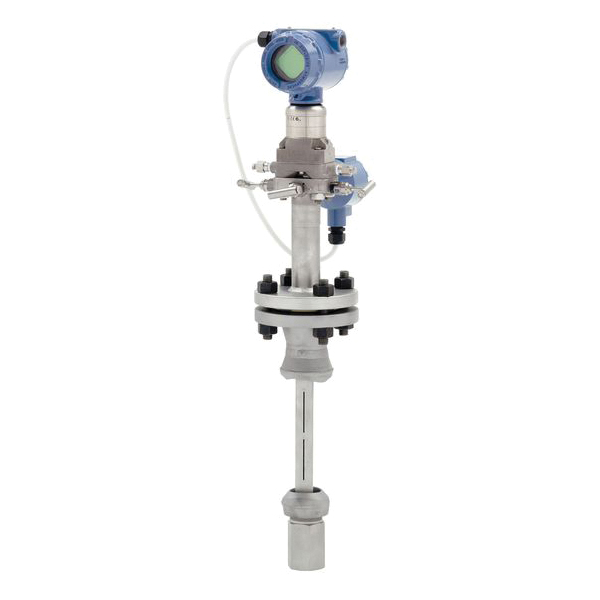

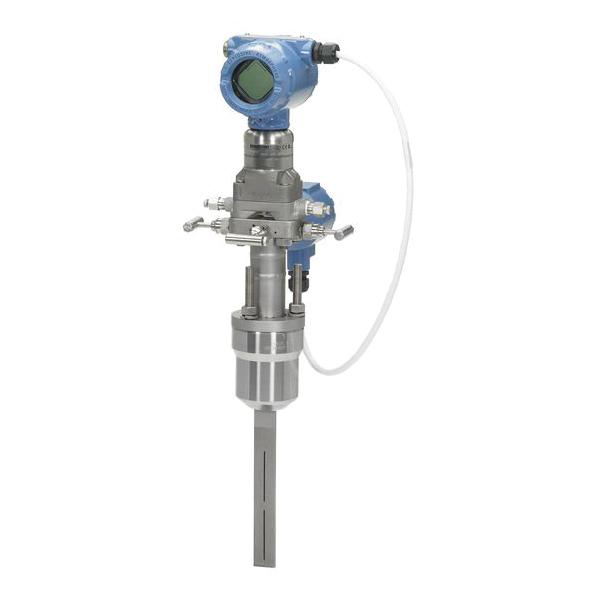

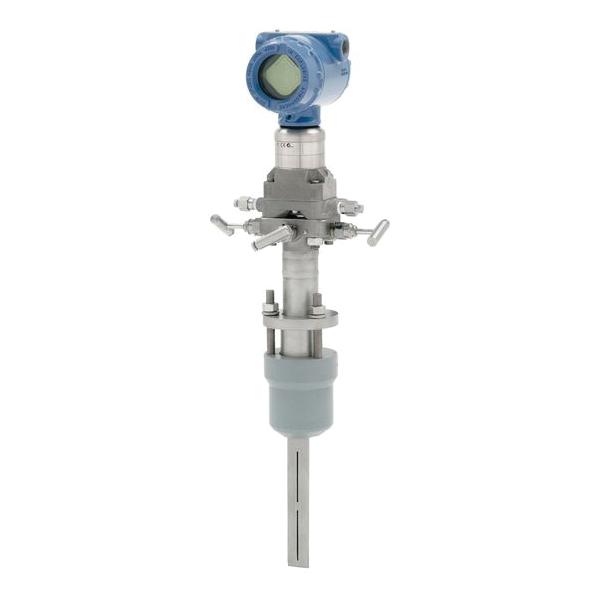

The Rosemount 3051SFA annubar flow meter is a no equal solution with a patented, averaging pitot tube that delivers superior measurement accuracy over a wide flow range. It's patented T-shaped sensor is engineered with an integrated thermowell, capable of obtaining measurements via a single pipe penetration while maintaining a small profile in the pipe to reduce permanent pressure loss and increase energy savings. This flow meter is also engineered with built-in flow calculations for fully compensated mass flow measurements and is offered with multiple communication protocols including WirelessHART®.

Rosemount Flow Meter, 3051S Series, 4 to 20 mA Outputs, +/-0.04 % Accuracy, LCD Display, Nickel Molybdenum Chromium Alloy/Stainless Steel Wetted, Additional Information: 8 in Line, Steam Fluid, Carbon Steel Pipe, Horizontal Piping, Pak-Lok, Stainless Steel Sensor, 2 to 8 in Sensor Size, Compression/Threaded Connection, Direct-Mount, Integral 3-Valve Manifold Transmitter, 0 to 621.60 mbar Differential Pressure

• Designed with built-in flow calculations for direct reporting of fully compensated mass flow
• Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues
• Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations
• Ultra for flow performance class enables optimized flow measurement with a +/-0.04% of reading accuracy
• Flowmeters come fully configured, leak tested and ready to install right out of the box for fast installation
• T-shape Annubar design features very low permanent pressure loss
• Integral thermowell of sensor adds process temperature measurement without additional pipe penetrations
• All welded, SuperModule™ design offers industry leading accuracy in harsh environments and applications

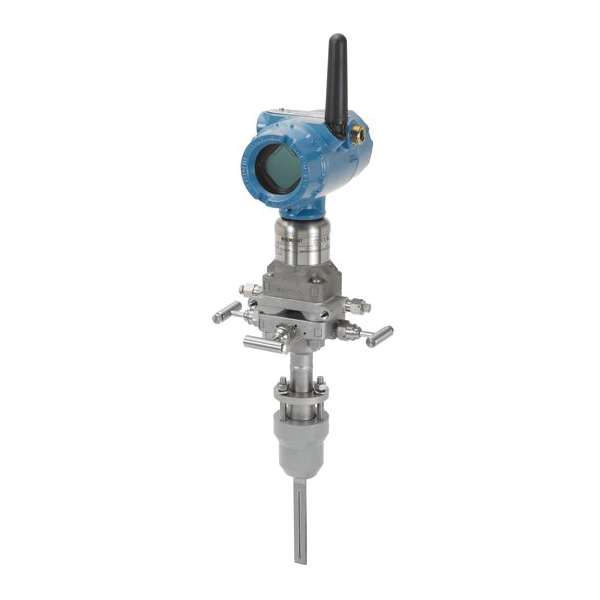

• WirelessHART® technology is secure, cost effective and delivers >99% data reliability without the cost of wiring
• SmartPower™ module provides up to 10 years maintenance-free operation and field replacement without transmitter removal
• Sensor stagnation zone positioned to reduce noise, measurement inaccuracies and keeps particulates from clogging
• Fully compensated mass and energy flow calculations differential and static pressures with temperature
• USA explosion-proof, dust ignition-proof
