Rosemount 3051S3CD3A2A12A1AD5KBM5Q4Q8A0145 1008437

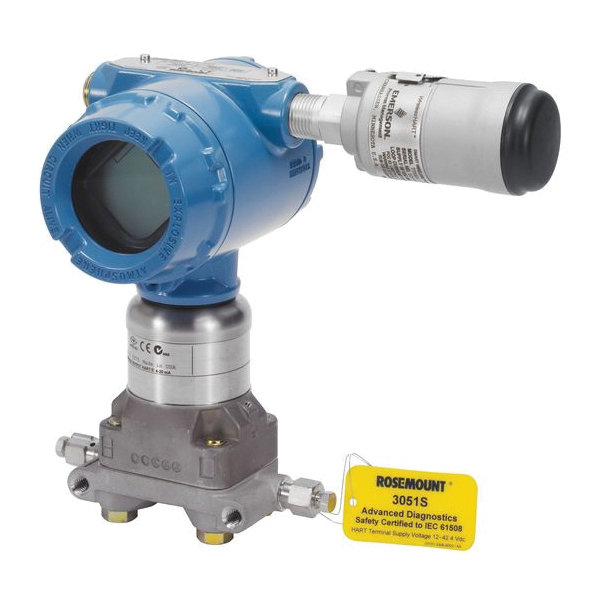

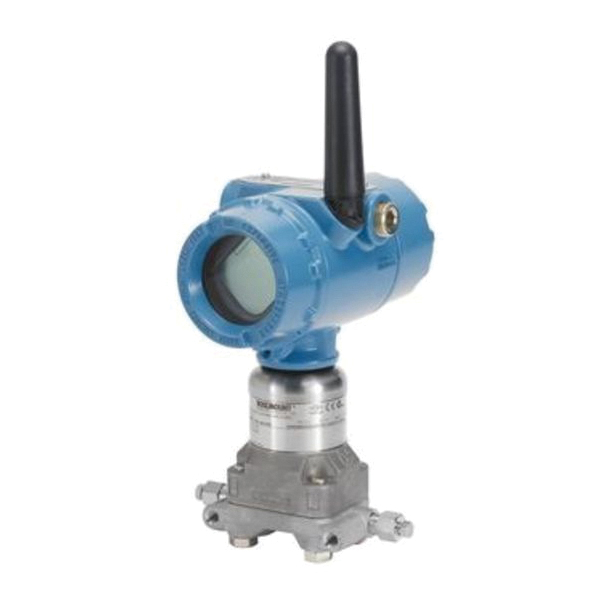

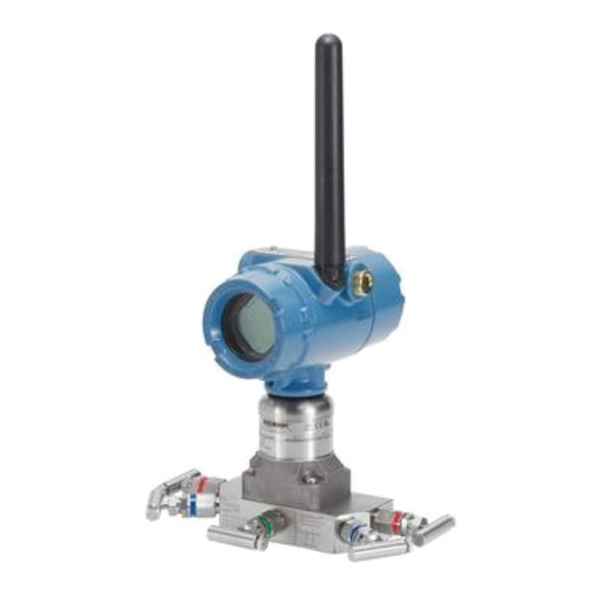

Rosemount Coplanar™ 3051S3CD3A2A12A1AD5KBM5Q4Q8A0145 Differential Pressure Transmitter, 225 m Wireless, NPT Connection

  • Manufacturer: Emerson Electric Co
  • Brand Name: Rosemount
  • Part Number: 1008437
  • MPN: 3051S3CD3A2A12A1AD5KBM5Q4Q8A0145
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The Rosemount 3051S Coplanar™ pressure transmitter is designed with the patented Coplanar™ technology and is the no equal solution for pressure, flow and level measurements. This scalable platform, available in both wired and WirelessHART® communication protocols, seamlessly integrates with manifolds, primary elements and seal solutions and optimizes performance for accurate differential, gage and absolute pressure measurements. With the SuperModule™ platform, this transmitter resists overpressure and line pressure effects to maintain unmatched performance.

Rosemount Differential Pressure Transmitter, 3051S Series, -1000 to 1000 in-WG Range, 4 to 20 mA Outputs, NPT Connection, 0.04 % Accuracy, 4000 psi, IP66, IP68, NEMA 4X Enclosure, 0 to 100 % Humidity Rating, 250 Ohm Loop Resistance, 100 ms Response, +/-0.15% of URL per 15 years Stability, 10.5 to 42.4 V, 225 m Wireless Range, Aluminum, 8.57 in H x 6.55 in W, -40 to 185 deg F

Accuracy      :      0.04 %
Connection Type      :      NPT
Dimensions      :      8.57 in H x 6.55 in W
Enclosure Type      :      IP66, IP68, NEMA 4X
Humidity Rating      :      0 to 100 %
Loop Resistance      :      250 Ohm
Material      :      Aluminum
Outputs      :      4 to 20 mA
Pressure Rating      :      4000 psi
Range      :      -1000 to 1000 in-WG
Response Time      :      100 ms
Series      :      3051S Series
Stability      :      +/-0.15% of URL per 15 years
Temperature Rating      :      -40 to 185 deg F
Voltage Rating      :      10.5 to 42.4 V
Wireless Range      :      225 m

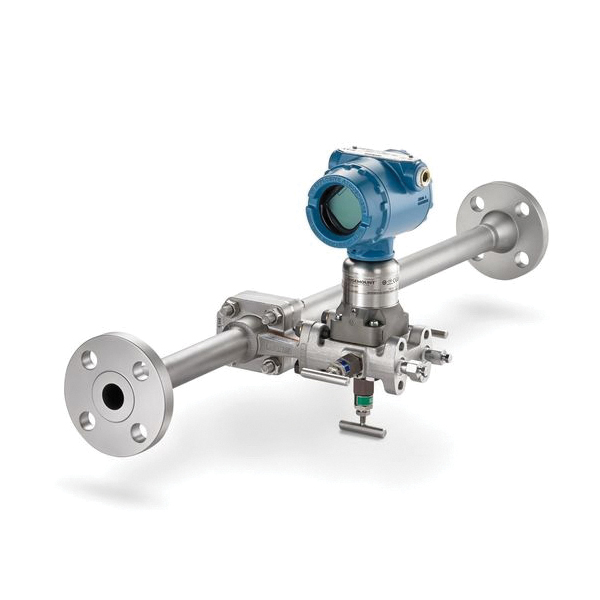

  • Patented Rosemount Coplanar™ technology offers optimized performance as a pressure, DP flow and DP level solution
  • Best in class, scalable architecture enhances performance, functionality and process connections
  • Transmitter arrives fully assembled and leak tested for simple installation and maintenance
  • All welded hermetic SST SuperModule™ platform resists overpressure and line pressure effects to ensure 0.025% accuracy
  • Ultra for flow performance classes deliver 15 years stability and 15 years limited warranty
  • 200:1 range down produce reliable measurements and wide application flexibility
  • Integrates seamlessly with 4 to 20 mA HART™, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
  • SmartPower™ module provides up to 10 years maintenance-free operation and field replacement without transmitter removal
  • SIL 2/3 certified to IEC 61508 (via third party) and prior use certificate of FMEDA data for safety installations
  • Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions
  • Remote display and interface offers easy access to process and device information
