Rosemount 3051CD2A02A1AM5KBS5Q4Q8 1108399

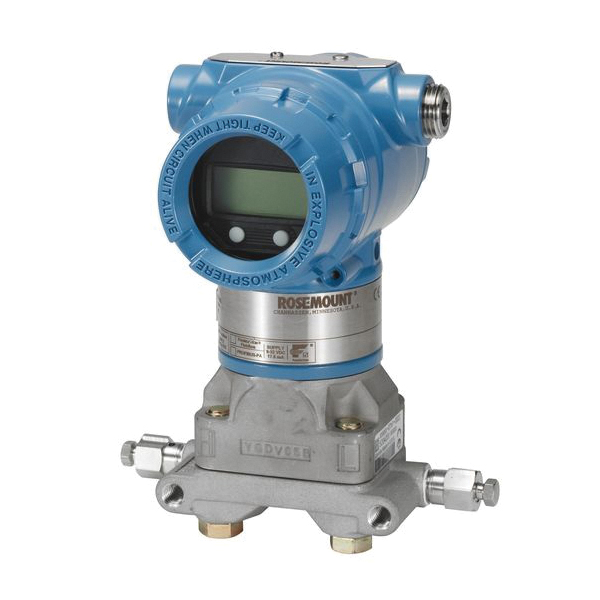

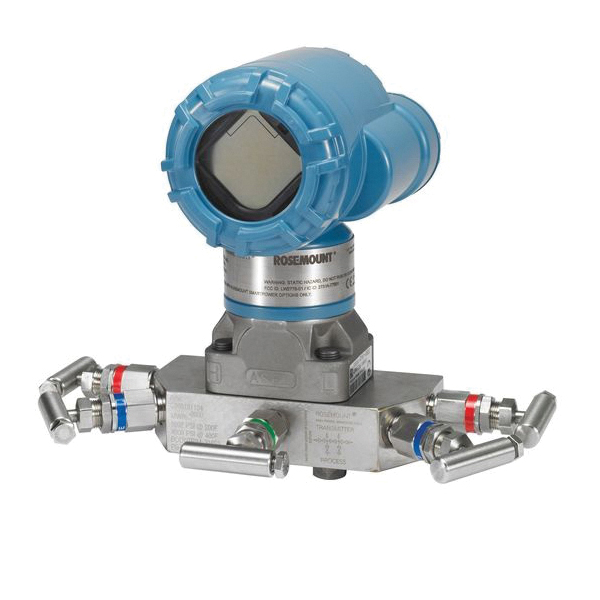

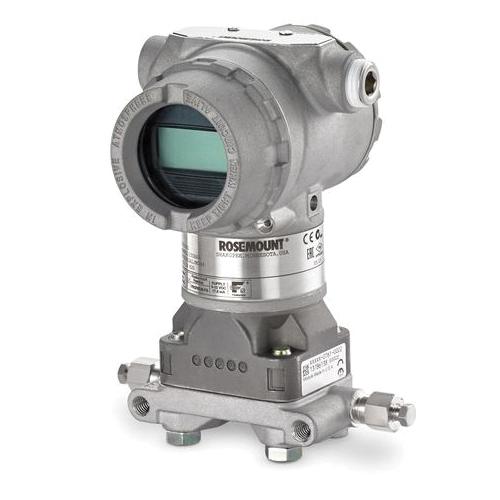

Rosemount Coplanar™ 3051CD2A02A1AM5KBS5Q4Q8 Differential Pressure Transmitter, 225 m Wireless, NPT Connection

  • Manufacturer: Emerson Electric Co
  • Brand Name: Rosemount
  • Part Number: 1108399
  • MPN: 3051CD2A02A1AM5KBS5Q4Q8
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The industry proven Rosemount 3051 with patented Coplanar™ technology allow for direct mounting in multiple measurement applications. 10 years stability and 150:1 range down produce reliable measurements and wide application flexibility. Available with a graphical, back-lit display, Bluetooth® connectivity, flow and level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.

Rosemount Differential Pressure Transmitter, 3051 Series, -250 to 250 in-WG Range, 4 to 20 mA Outputs, NPT Connection, 0.04 % Accuracy, 2000 psi, IP65, IP66, IP68, NEMA 4X Enclosure, 0 to 100 % Humidity Rating, 250 Ohm Loop Resistance, 85 ms Response, +/-0.2% of URL per 10 years Stability, 10.5 to 42.4 V, 225 m Wireless Range, Aluminum, 7.12 in H x 6.55 in W, -40 to 185 deg F, Additional Information: Glass Filled PTFE O-ring

Accuracy      :      0.04 %
Additional Information      :      Glass Filled PTFE O-ring
Connection Type      :      NPT
Dimensions      :      7.12 in H x 6.55 in W
Enclosure Type      :      IP65, IP66, IP68, NEMA 4X
Humidity Rating      :      0 to 100 %
Loop Resistance      :      250 Ohm
Material      :      Aluminum
Outputs      :      4 to 20 mA
Pressure Rating      :      2000 psi
Range      :      -250 to 250 in-WG
Response Time      :      85 ms
Series      :      3051 Series
Stability      :      +/-0.2% of URL per 10 years
Temperature Rating      :      -40 to 185 deg F
Voltage Rating      :      10.5 to 42.4 V
Wireless Range      :      225 m
  • Patented Rosemount Coplanar™ technology offers optimized performance as a pressure, differential pressure flow or differential pressure level solution
  • Application specific configuration allow you to transform your pressure transmitter into a flow meter with a totalizer or a level transmitter with volume calculations
  • Complete pressure, level or flow assemblies are leak tested and calibrated to reduce leak points up to 70% and simplify installation
  • Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
  • The graphical, back-lit display allow for easy operation in 8 different languages in all lighting conditions
  • Loop integrity and plugged impulse line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
  • Quick-service buttons offer built-in configuration buttons for streamlined commissioning
  • SIL 2/3 certified to IEC 61508 (via third party) and prior use certificate of FMEDA data for safety installations
  • WirelessHART® technology is secure and cost-effective and delivers >99% data reliability
  • SmartPower™ module provides up to 10 years maintenance-free operation and field replacement without transmitter removal
  • Easy installation enables quick-instrumentation of measurement points without the cost of wiring
