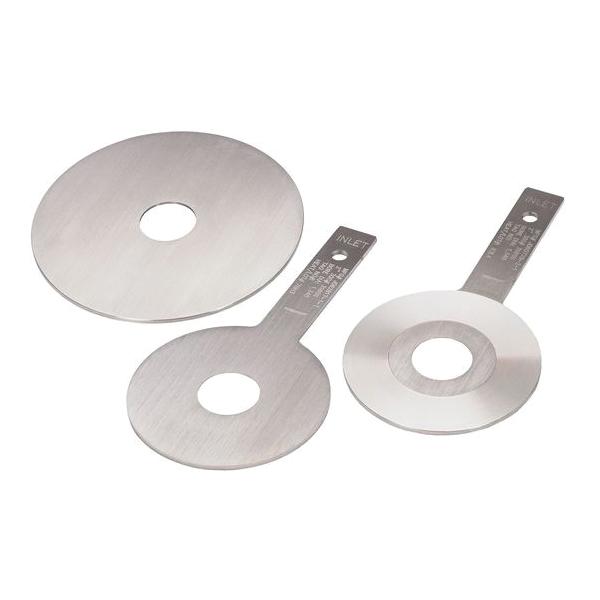

The Rosemount 1495 orifice plate primary element is engineered for reliable measurement performance. As the most common primary element used around the globe, this orifice plate offers a standard configuration with a square edged concentric bore in both paddle and universal-type plates. This product is available in standard line sizes (2 to 24 in or 50 to 600 mm) and is also suitable in high temperature and pressure applications.
Rosemount Orifice Plate, Stainless Steel, 1/8 in THK, Additional Information: ANSI B16.5 2500 lb Operating Pressure, -320 to 1200 deg F Temperature Range, Gas, Liquid, Steam Fluid, 1-1/2 in Line, ANSI Class 300 Raised Face Flange Rating, 3/4 in Dia Bore, Bore Calculation, Schedule 80
| Additional Information | : | ANSI B16.5 2500 lb Operating Pressure, -320 to 1200 deg F Temperature Range, Gas, Liquid, Steam Fluid, 1-1/2 in Line, ANSI Class 300 Raised Face Flange Rating, 3/4 in Dia Bore, Bore Calculation, Schedule 80 |
| Dimensions | : | 1/8 in THK |
| Material | : | Stainless Steel |
- Can be ordered in line sizes ranging from 2 to 24 in (50 to 60 mm) or custom line sizes for application flexibility

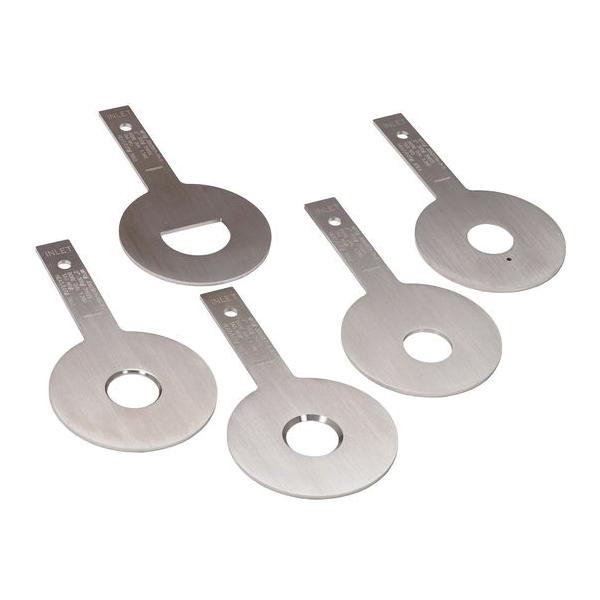

- Offers standard configuration of square edged concentric bore in both paddle and universal-type plates
- Withstands high temperature and pressure applications, providing long-lasting durability
- Paddle, concentric with better than 50 Ra (1.25 um) finish
