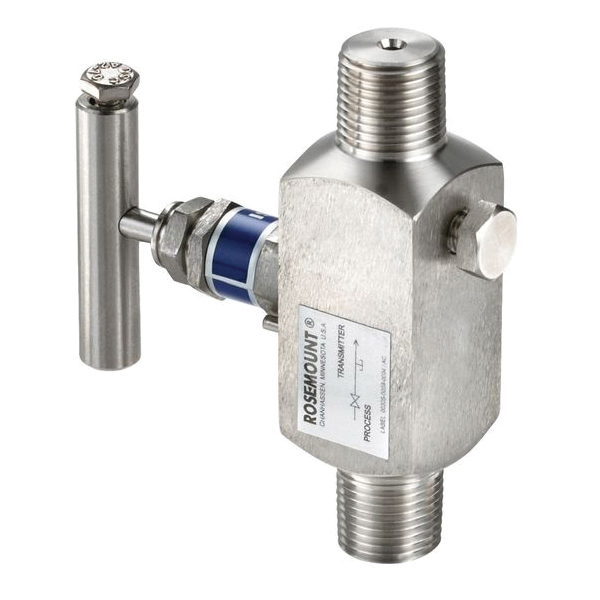

Rosemount 0306RT12AA11 1018450

The Rosemount 306 in-line manifold is engineered for in-line transmitters. This manifold comes with a male or female threaded NPT process connection and assembles directly to pressure transmitters and gauges for simple in-process calibration. Featuring block-and-bleed and 2-valve configuration for instrument isolation and drain/vent capabilities, this manifold comes factory-assembled to transmitters and gauges, leak-tested and calibrated.

Rosemount Threaded Block and Bleed In-Line Manifold, 0306 Series, 316/316L Stainless Steel, For Use With: In-Line Transmitters, Additional Information: 1/2-14 MNPT Process Connection, PTFE Packing Material

• Assembles directly to in-line pressure transmitters and gauges for simple in-process calibration
• Block-and-bleed and two-valve configurations provide instrument isolation and drain/vent capabilities
• MNPT or FNPT process connection meets varying application requirements
• Factory assembled, leak tested and calibrated to assure optimal performance

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Rosemount_0304RT22B21L5_Catalog.pdf
