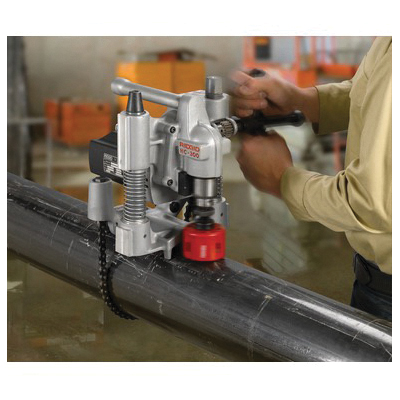

The RIDGID® Model HC-300 Hole Cutting Tool is designed to cut holes up to 3 in (76 mm) diameter into steel pipe. The multiple hole size allows the use of fittings such as Mechanical T®, Vic-O-Let™, Weld-O-Let™ and others for branching unpressurized pipelines. An integral motor and gear reduction optimizes the performance and saw life. A single-feed handle and ON/OFF switch allows for easy operation. The Model HC-300 offers great features that translate into unparalleled field and shop performance.
RIDGID® Hole Cutting Tool, Model: HC-300, 3 in Cutter Diameter, 7/16 in Arbor, R2S Arbor Hole, 1/16 to 1/2 in Pilot Drill Diameter, Steel Pilot Drill, 1-1/2 to 8 in Conduit/Pipe
| Arbor Hole Type | : | R2S |
| Arbor Size | : | 7/16 in |
| Conduit/Pipe Size | : | 1-1/2 to 8 in |
| Cutter Diameter | : | 3 in |
| Model | : | HC-300 |
| Pilot Drill Diameter | : | 1/16 to 1/2 in |
| Pilot Drill Material | : | Steel |
- Quick connecting two-piece design allows for easy mounting and transport
- Single-hand chain latching saves time and significantly aids with set up and operation
- Compact design is great for tight quarters and awkward locations
- Ergonomoic Design provides control at the operators fingertips
- Horizontal and Vertical Flats - Ensures perpendicular cutting
- Hole Cutting Capacity: Up to 3 in (76 mm)
- Pipe Diameter Mounting Range: 1-1/2 in (38 mm) to 8 in (200 mm)
- Chuck Size: 1/16 in(1.6 mm) to 1/2 in (13 mm)
- Motor: Universal, 115V/230V, 60Hz, Approved by CSA to CSA and UL standards
- Output Speed: 360 RPM (no load)
- Arbor Capacity: Up to 7/16 in
- Weight: 31 lb
- Height: 12.8 in
- Length: 11.9 in
- Width: 13.2 in
- Approved by CSA to CSA and UL standards, 115V/230V
