Delivering heating and cooling equipment you can trust requires an uncompromising approach to quality. Through innovative processes and rigorous testing, each Luxaire unit is built to provide consistently dependable comfort.

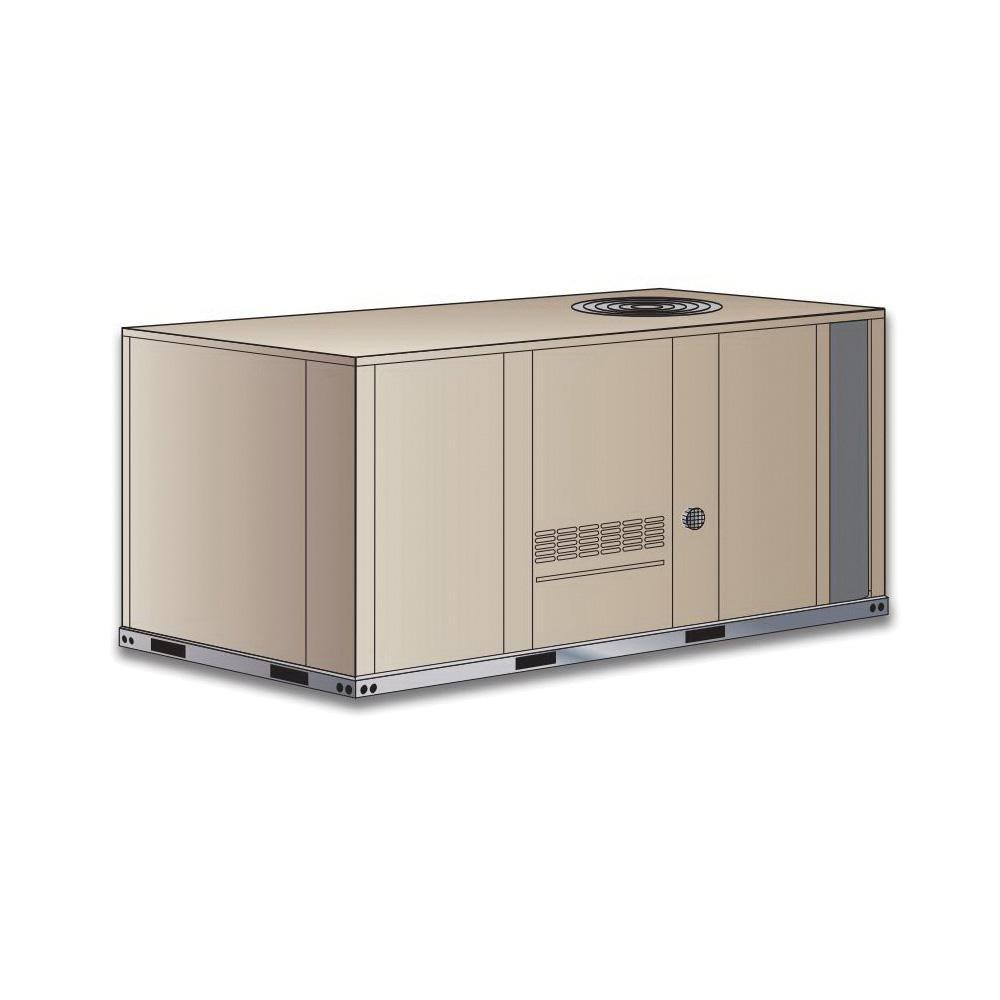

Luxaire® Electric Heat Package Unit, Series: Eclipse, Model: ZYE06, 60000 Btu/hr Gross Cooling, 58000 Btu/hr Net Cooling Input BTU, 460 VAC, 4.4 kW Wattage, 1 hp Evaporator, 1/2 hp Condenser, 1050 rpm Evaporator, 1085 rpm Condenser Rotational Speed, 60 Hz, 3 ph Phase, (1) Scroll Compressor, 1600 cfm, 15.2 SEER, 5 ton Tonnage, 1 Cool Stages, R-410A Refrigerant, 79 dBA Decibel Rating, Direct Drive, Evaporator Coil - 7.3 sq-ft Face Area, 15 Fins/in, Condenser Coil - 21.1 sq-ft Face Area, 23 Fins/in Coil Rating, 3/4-14 NPT Drain Connection, (4) 16 x 16 x 2 in Filter, Galvanized, Powder-Painted, 74.1 in L x 48.9 in W x 40.6 in H
| CFM Rating | : | 1600 cfm |
| Coil Rating | : | Evaporator Coil - 7.3 sq-ft Face Area, 15 Fins/in, Condenser Coil - 21.1 sq-ft Face Area, 23 Fins/in |
| Compressor Type | : | (1) Scroll |
| Connection Type | : | 3/4-14 NPT Drain |
| Decibel Rating | : | 79 dBA |
| Dimensions | : | 74.1 in L x 48.9 in W x 40.6 in H |
| Drive Type | : | Direct |
| Filter Size | : | (4) 16 x 16 x 2 in |
| Finish | : | Galvanized, Powder-Painted |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp Evaporator, 1/2 hp Condenser |
| Input BTU Rating | : | 60000 Btu/hr Gross Cooling, 58000 Btu/hr Net Cooling |
| Model | : | ZYE06 |
| Number of Stages | : | 1 Cool |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1050 rpm Evaporator, 1085 rpm Condenser |
| SEER Rating | : | 15.2 |
| Series | : | Eclipse |
| Tonnage | : | 5 ton |
| Voltage Rating | : | 460 VAC |
| Wattage | : | 4.4 kW |
- Easy to install - Speed up installation with a packaged unit that fits on many competitive roof top curbs
- Flexibility - Matches up with many existing rooftop curbs
- Durability - feel confident with built-in protections and certified safeties
- 5 years limited compressor warranty
- 1 year limited parts warranty
- No heat, electric heat field installed
- No heat (cooling only)
- Standard indoor and outdoor coils
- Fault detection and diagnostics (FDD)
- Units come standard with factory installed supply air, return air, and outdoor air temperature sensors
- Second generation
