Luxaire® ZXG14S4C3AA2C322A2 1085167

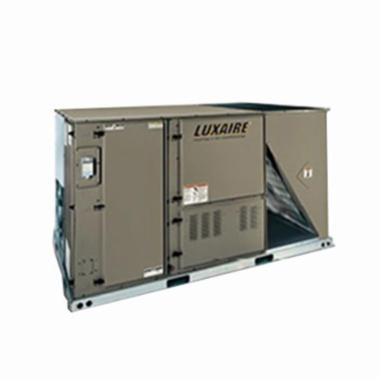

Luxaire® Eclipse ZXG14S4C3AA2C322A2 ZXG14 Gas Heat Package Unit, 460 VAC, 4000 cfm, 12.5 ton
- Manufacturer: Johnson Controls
- Brand Name: Luxaire®
- Part Number: 1085167
- MPN: ZXG14S4C3AA2C322A2
- UPC: 883982645717
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Delivering heating and cooling equipment you can trust requires an uncompromising approach to quality. Through innovative processes and rigorous testing, each Luxaire unit is built to provide consistently dependable comfort.
Luxaire® Gas Heat Package Unit, Series: Eclipse, Model: ZXG14, 145000 Btu/hr Gross Cooling, 135000 Btu/hr Net Cooling, 220000 Btu/hr Heating Input BTU, 176000 Btu/hr Heating Output BTU, 460 VAC, 10.8 kW Cooling Wattage, 5-1/4 hp Evaporator, 1-1/2 hp Condenser, 1750 rpm Evaporator, 1140 rpm Condenser Rotational Speed, 60 Hz, 3 ph Phase, (2) Scroll Compressor, 4000 cfm, 12.5 IEER, 10.8 EER Rating, 11 SEER, 12.5 ton Tonnage, 5 Burners, 2 Heat/Cool Stages, R-410A Refrigerant, 90 dBA Decibel Rating, Belt Evaporator, Direct Condenser Drive, Evaporator Coil - 11.1 sq-ft Face Area, 15 Fins/in, Condenser Coil - 24.9 sq-ft Face Area, 21 Fins/in Coil Rating, 3/4-14 NPT Drain Connection, (4) 20 x 20 x 2 in Filter, 0.8 Steady State Efficiency, Steel, Galvanized, Powder-Painted, 26 to 43 deg F Rise, 87.2 in L x 61.7 in W x 55.26 in H
| CFM Rating | : | 4000 cfm |
| Coil Rating | : | Evaporator Coil - 11.1 sq-ft Face Area, 15 Fins/in, Condenser Coil - 24.9 sq-ft Face Area, 21 Fins/in |
| Compressor Type | : | (2) Scroll |
| Connection Type | : | 3/4-14 NPT Drain |
| Decibel Rating | : | 90 dBA |
| Dimensions | : | 87.2 in L x 61.7 in W x 55.26 in H |
| Drive Type | : | Belt Evaporator, Direct Condenser |
| EER Rating | : | 10.8 |
| Filter Size | : | (4) 20 x 20 x 2 in |
| Finish | : | Galvanized, Powder-Painted |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 5-1/4 hp Evaporator, 1-1/2 hp Condenser |
| IEER Rating | : | 12.5 |
| Input BTU Rating | : | 145000 Btu/hr Gross Cooling, 135000 Btu/hr Net Cooling, 220000 Btu/hr Heating |
| Material | : | Steel |
| Model | : | ZXG14 |
| Number of Burners | : | 5 |
| Number of Stages | : | 2 Heat/Cool |
| Output BTU Rating | : | 176000 Btu/hr Heating |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1750 rpm Evaporator, 1140 rpm Condenser |
| SEER Rating | : | 11 |
| Series | : | Eclipse |
| Steady State Efficiency | : | 0.8 |
| Temperature Rating | : | 26 to 43 deg F Rise |
| Tonnage | : | 12.5 ton |
| Voltage Rating | : | 460 VAC |
| Wattage | : | 10.8 kW Cooling |
- Easy to install - Speed up installation with a packaged unit that fits on many competitive roof top curbs
- Flexibility - Matches up with many existing rooftop curbs
- Durability - feel confident with built-in protections and certified safeties
- Provides high gas heat capacity
- 5 years limited compressor warranty
- 15 years limited stainless steel heat exchanger warranty
- 1 year limited parts warranty
- Stainless steel medium heat exchanger
- VFD intellispeed supply fan
- Standard indoor and outdoor coils
- Smart equipment
- Return air smoke detector sensor
- Enthalpy economizer
- Powered convenience outlet
- Non-fused disconnect switch
- Louvered panels installed
- Second generation
