Delivering heating and cooling equipment you can trust requires an uncompromising approach to quality. Through innovative processes and rigorous testing, each Luxaire unit is built to provide consistently dependable comfort.

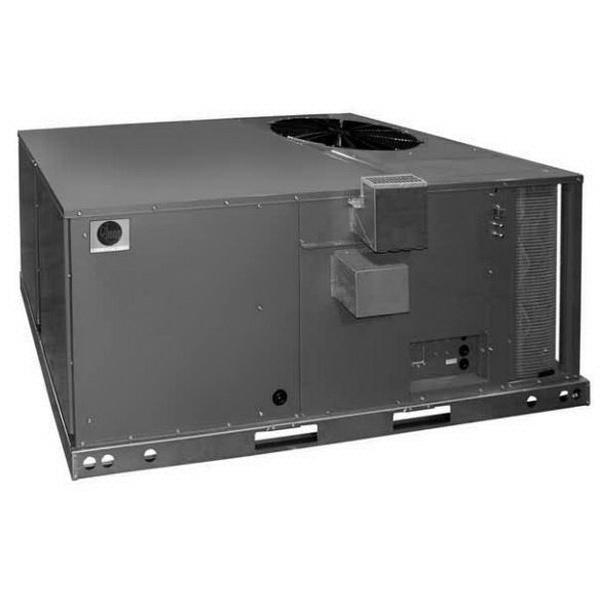

Luxaire® Gas Heat Package Unit, Series: Ovation, Model: ZU-06, 81000 Btu/hr Gross Cooling, 77000 Btu/hr Net Cooling, 120000 Btu/hr Heating Input BTU, 96000 Btu/hr Heating Output BTU, 460 VAC, 6.69 kW Cooling Wattage, 1-1/2, 2 hp Evaporator, 1/3 hp Condenser, 1725 rpm Evaporator, 850 rpm Condenser Rotational Speed, 60 Hz, 3 ph Phase, (2) Reciprocating Compressor, 2600 cfm, 12.7 IEER, 11.5 EER Rating, 6.5 ton Tonnage, 4 Burners, 2 Heat/Cool Stages, R-410A Refrigerant, 87 dBA Decibel Rating, Belt Drive Evaporator, Direct Drive Condenser Drive, Evaporator Coil - 10.6 sq-ft Face Area, 15 Fins/in, Condenser Coil - 23.8 sq-ft Face Area, 23 Fins/in Coil Rating, 3/4 in FNPT Drain Connection, (4) 24 x 16 x 2 in Filter, 0.8 Steady State Efficiency, Steel, Galvanized, Powder-Painted, 20 to 50 deg F Rise, 89 in L x 59 in W x 42 in H
| CFM Rating | : | 2600 cfm |
| Coil Rating | : | Evaporator Coil - 10.6 sq-ft Face Area, 15 Fins/in, Condenser Coil - 23.8 sq-ft Face Area, 23 Fins/in |
| Compressor Type | : | (2) Reciprocating |
| Connection Type | : | 3/4 in FNPT Drain |
| Decibel Rating | : | 87 dBA |
| Dimensions | : | 89 in L x 59 in W x 42 in H |
| Drive Type | : | Belt Drive Evaporator, Direct Drive Condenser |
| EER Rating | : | 11.5 |
| Filter Size | : | (4) 24 x 16 x 2 in |
| Finish | : | Galvanized, Powder-Painted |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1-1/2, 2 hp Evaporator, 1/3 hp Condenser |
| IEER Rating | : | 12.7 |
| Input BTU Rating | : | 81000 Btu/hr Gross Cooling, 77000 Btu/hr Net Cooling, 120000 Btu/hr Heating |
| Material | : | Steel |
| Model | : | ZU-06 |
| Number of Burners | : | 4 |
| Number of Stages | : | 2 Heat/Cool |
| Output BTU Rating | : | 96000 Btu/hr Heating |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1725 rpm Evaporator, 850 rpm Condenser |
| Series | : | Ovation |
| Steady State Efficiency | : | 0.8 |
| Temperature Rating | : | 20 to 50 deg F Rise |
| Tonnage | : | 6.5 ton |
| Voltage Rating | : | 460 VAC |
| Wattage | : | 6.69 kW Cooling |
- Easy to install - Uses MicroChannel condenser coils in a wide-capacity packaged cooling and gas heating rooftop line
- Flexibility - Enjoy the flexibility of a single footprint to fit most applications
- Durability - feel confident with built-in protections and certified safeties
- 5 years limited compressor warranty
- 10 years limited aluminized steel heat exchanger warranty
- 1 year limited parts warranty
- Aluminized steel gas heat exchanger
- Standard static blower
- No economizer
- DSC (disconnect switch), PCO (powered convenience outlet)
- Stand alone smart equipment
- PHM (phase monitor)
- Standard refrigeration
- Standard cabinet
- CG (coil guard), standard filter
- First generation
