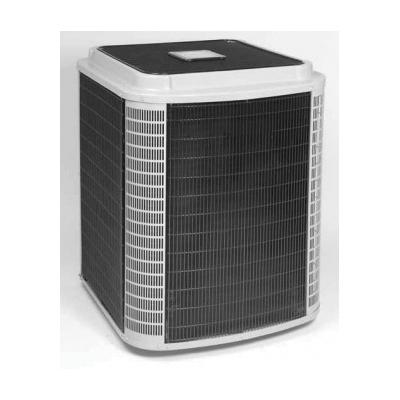

KeepRite® Split-System Heat Pump, H4H3 Series, 208 to 230 V, 21.1 A, 1/4 hp, 60 Hz, 3 ph Phase, 802 rpm Rotational Speed, 60000 Btu/hr Cooling, 4000 cfm, 13 SEER, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 30 A Fuse Rating, 17.6 sq-ft Face Area, 20 FPI Coil, Tonnage: 5 ton, 72 dBA Sound Level, Steel, Finish: Baked-On Powder-Coated/Galvanized, 29-7/8 in H x 35 in W x 35 in D
| Amperage Rating | : | 21.1 A |
| BTU Rating | : | 60000 Btu/hr Cooling |
| CFM Rating | : | 4000 cfm |
| Coil Rating | : | 17.6 sq-ft Face Area, 20 FPI |
| Compressor Type | : | Scroll |
| Dimensions | : | 29-7/8 in H x 35 in W x 35 in D |
| Finish | : | Baked-On Powder-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| HP Rating | : | 1/4 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 802 rpm |
| SEER Rating | : | 13 |
| Series | : | H4H3 Series |
| Sound Level | : | 72 dBA |
| Tonnage | : | 5 ton |
| Voltage Rating | : | 208 to 230 V |
- Product family
- Coil guard grille
- Copeland™ scroll compressors on all models
- Crankcase heater factory installed
- Suction line accumulator factory installed, bi-flow filter drier included for field installation
- Bi-flow filter drier included for field installation
- Integrated solid state control with time temperature defrost
- High and low refrigerant service ports
- Copper tube/post-painted (black) aluminum fin coil
- Compressor sound jacket standard
- Easy-to install and service
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 3/8 in grille spacing for extra protection
- Corner posts for extra strength and style
- 15.9 A rated load, 110 A locked rotor compressor, 1.2 A full load fan
Instruction/Installation Manual
