Johnson Controls T-5502-1002 1067216
  1. pin-int

Johnson Controls T-5502-1002 1067216

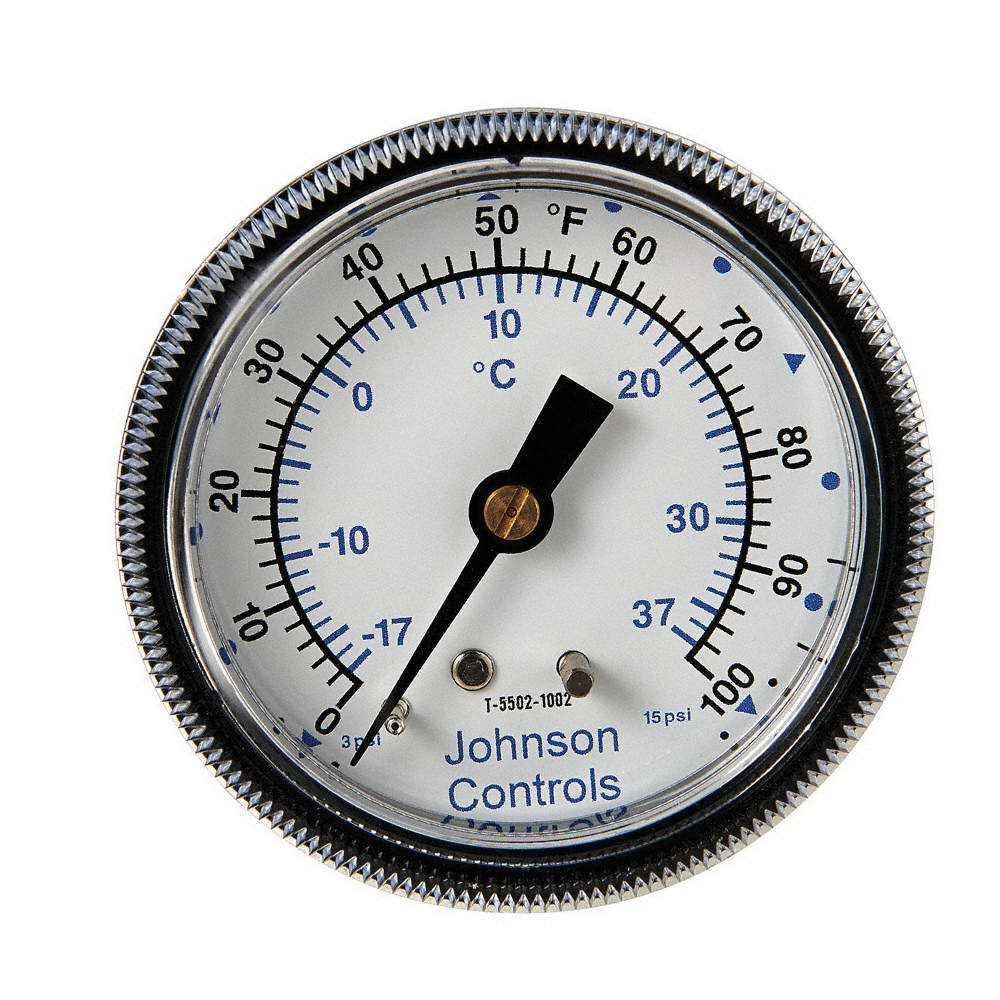

Johnson Controls T-5500 Series T-5502-1002 Pneumatic Temperature Indicator, Flush, Surface Mounting

  • Manufacturer: Johnson Controls
  • Brand Name: Johnson Controls
  • Part Number: 1067216
  • MPN: T-5502-1002
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The T-5500 series pneumatic temperature indicator provides continuous indication of the temperature measurement of a transmitter in a 3 to 15 lbf/sq-in (21 to 105 kPa) pneumatic transmission system.

Johnson Controls Pneumatic Temperature Indicator, Series: T-5500 Series, 1/8 in, NPT, 3 to 15 psig, Flush, Surface Mount, -20 to 150 deg F, 1-27/32 in H

Connection Size      :      1/8 in
Connection Type      :      NPT
Dimensions      :      1-27/32 in H
Mounting Type      :      Flush, Surface
Pressure Rating      :      3 to 15 psig
Series      :      T-5500 Series
Temperature Rating      :      -20 to 150 deg F
  • 2-1/2 in dial size, +/- 3-2-3% accuracy of full range per ANSI spec B40.1M
  • Equivalent fahrenheit and metric scale printed on dial face, the dial range must match the range of the transmitter which is being used
  • Easy readability
  • Removable clear plastic lens cover for cleaning and recalibration
  • Equipped to be flush or surface-mounted
  • Notched U-clamps for flush-mounting break off to accommodate panel thicknesses of 1/16-3/4 in
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Johnson_Controls_T_5502_1002_Specification_Sheet.pdf
