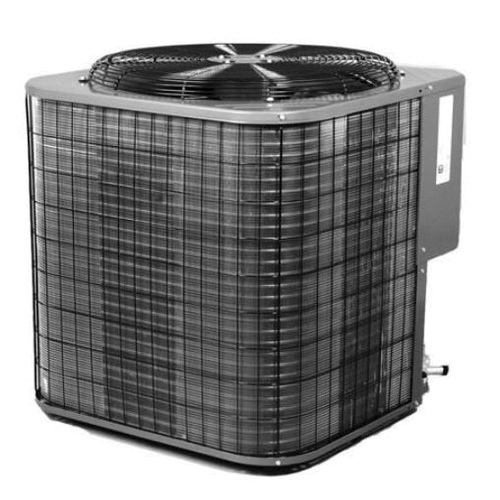

ICP™ Split-System Heat Pump, R4H3 Series, 208 to 230 V, 0.8 A, 1/10 hp, 60 Hz, 1 ph Phase, 1100 rpm Rotational Speed, 24000 Btu/hr Cooling/Heating, 2100 cfm, 13 SEER, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 25 A Fuse Rating, 11.2 sq-ft Face Area Coil, Tonnage: 2 ton, 76 dBA Sound Level, Steel, Finish: Galvanized/Pre-Painted, 31-13/16 in H x 23-1/8 in W x 23-1/8 in D
| Amperage Rating | : | 0.8 A |
| BTU Rating | : | 24000 Btu/hr Cooling/Heating |
| CFM Rating | : | 2100 cfm |
| Coil Rating | : | 11.2 sq-ft Face Area |
| Compressor Type | : | Scroll |
| Dimensions | : | 31-13/16 in H x 23-1/8 in W x 23-1/8 in D |
| Finish | : | Galvanized/Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A |
| HP Rating | : | 1/10 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1100 rpm |
| SEER Rating | : | 13 |
| Series | : | R4H3 Series |
| Sound Level | : | 76 dBA |
| Tonnage | : | 2 ton |
| Voltage Rating | : | 208 to 230 V |
- Scroll compressors on all models
- Suction line accumulator factory installed, bi-flow filter drier included for field installation
- Integrated solid state control with time temperature defrost
- High/low pressure switches
- Copper tube/aluminum fin coils
- Easy-access service valves on all model
- External high and low refrigerant service ports
- Only two-screws to access control panel
- Factory charged with R-410A refrigerant
- Pre-painted cabinet finish over galvanized steel
- Product family
- Coil guard grille
- Sales code
