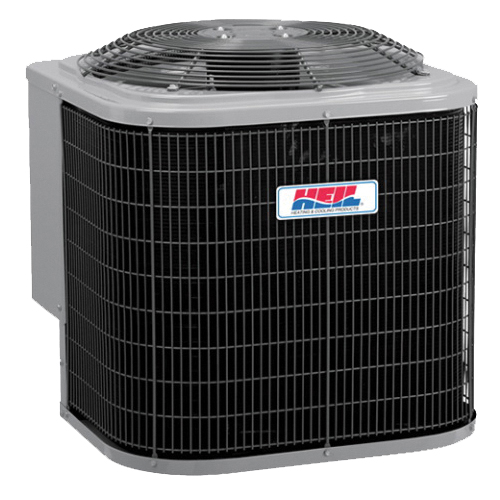

ICP™ Split-System Heat Pump, N4H3 Series, 460 V, 0.6 A, 1/5 hp, 60 Hz, 3 ph Phase, 1100 rpm Rotational Speed, 36000 Btu/hr Cooling/Heating, 3000 cfm, 11 EER Rating, 13 SEER, 7.7 HSPF, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 10 A Fuse Rating, 17.2 sq-ft Face Area, 20 FPI Coil, Tonnage: 3 ton, 75 dBA Sound Level, 1 Stages, Steel, Finish: Baked-On Powder-Coated/Galvanized, 31-3/16 in L x 31-3/16 in W x 31-13/16 in H
| Amperage Rating | : | 0.6 A |
| BTU Rating | : | 36000 Btu/hr Cooling/Heating |
| CFM Rating | : | 3000 cfm |
| Coil Rating | : | 17.2 sq-ft Face Area, 20 FPI |
| Compressor Type | : | Scroll |
| Dimensions | : | 31-3/16 in L x 31-3/16 in W x 31-13/16 in H |
| EER Rating | : | 11 |
| Finish | : | Baked-On Powder-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 10 A |
| HP Rating | : | 1/5 hp |
| HSPF Rating | : | 7.7 |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Number of Stages | : | 1 |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1100 rpm |
| SEER Rating | : | 13 |
| Series | : | N4H3 Series |
| Sound Level | : | 75 dBA |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 460 V |
- Scroll compressors on all models
- Suction line accumulator factory installed, bi-flow filter drier included for field installation
- Bi-flow filter drier included for field installation
- Integrated solid state control with time temperature defrost
- High/low pressure switches
- Copper tube/aluminum fin coils
- Easy-access service valves on all model
- External high and low refrigerant service ports
- Only two-screws to access control panel
- Baked-on powder-coated finish over galvanized steel
- Post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- 3/8 in spacing inlet grille
