Honeywell AM101-1 1096803

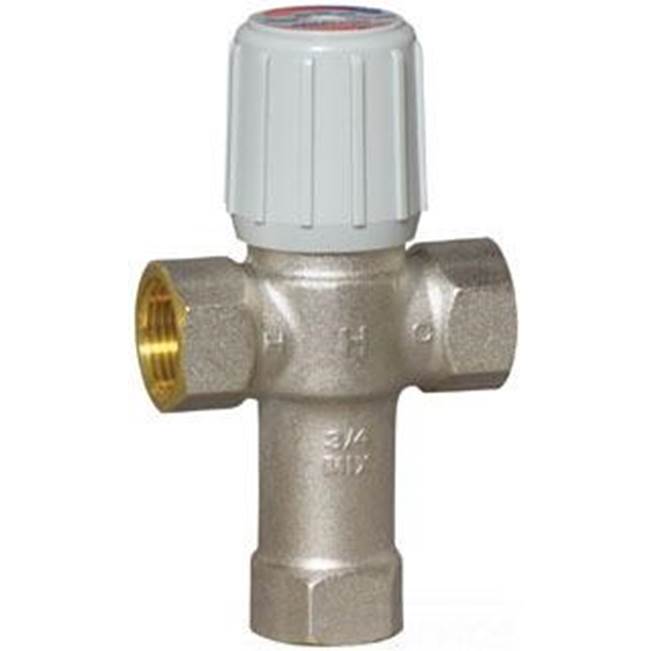

Honeywell Sparcomix™ AM-1 AM101-1 Thermostatic Mixing Valve, 3/4 in Nominal, NPT Connection, 12 gpm, 150 psi Pressure
- Manufacturer: Honeywell International Inc
- Brand Name: Honeywell
- Part Number: 1096803
- MPN: AM101-1
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The Honeywell AM-1 series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. By installing a Honeywell AM-1 mixing valve, raising water heater storage temperature setting, and limiting mixed outlet water temperature to a safe temperature, more usable hot water is available.
Honeywell Thermostatic Mixing Valve, Series: AM-1, 3/4 in Nominal, Connection Type: NPT, 150 psi, 12 gpm Flow Rate, Brass Body, Nickel-Plated/PTFE-Coated, 70 to 145 deg F, 3 in W x 5.8 in H
| Body Material | : | Brass |
| Connection Type | : | NPT |
| Dimensions | : | 3 in W x 5.8 in H |
| Finish | : | Nickel-Plated/PTFE-Coated |
| Flow Rate | : | 12 gpm |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | AM-1 |
| Temperature Rating | : | 70 to 145 deg F |
- THERMOSTATIC TYPE; 0.5 GPM FLOW RATE; 3/4 INCH NOMINAL SIZE; ASSE 1017, CSA (CANADA AND US), UPC, IAPMO APPLICABLE STANDARD; DOMESTIC WATER, AUTOMATIC FAUCET, RADIANT FLOOR HEATING, SPACE HEATING, SOLAR HOT WATER APPLICATION
