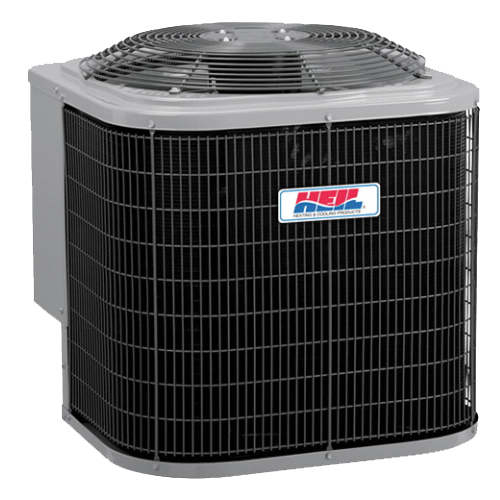

HEIL® Split-System Heat Pump, Performance N4H4 Series, 208 to 230 V, 31.2 A, 1/4 hp, 60 Hz, 1 ph Phase, 1100 rpm Rotational Speed, 42000 Btu/hr Cooling/Heating, 3800 cfm, 11.5 EER Rating, 14 SEER, 8.2 HSPF, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 50 A Fuse Rating, 15.09 sq-ft Face Area, 20 FPI Coil, Propeller Direct Drive, Tonnage: 3.5 ton, 77 dBA without Sound Shield, 77 dBA with Sound Shield Sound Level, 1 Stages, Steel, Finish: Galvanized/Powder-Coated, 28-7/16 in H x 31-3/16 in W x 31-3/16 in D
| Amperage Rating | : | 31.2 A |
| BTU Rating | : | 42000 Btu/hr Cooling/Heating |
| CFM Rating | : | 3800 cfm |
| Coil Rating | : | 15.09 sq-ft Face Area, 20 FPI |
| Compressor Type | : | Scroll |
| Dimensions | : | 28-7/16 in H x 31-3/16 in W x 31-3/16 in D |
| Drive Type | : | Propeller Direct |
| EER Rating | : | 11.5 |
| Finish | : | Galvanized/Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HP Rating | : | 1/4 hp |
| HSPF Rating | : | 8.2 |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1100 rpm |
| SEER Rating | : | 14 |
| Series | : | Performance N4H4 Series |
| Sound Level | : | 77 dBA without Sound Shield, 77 dBA with Sound Shield |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 3.5 ton |
| Voltage Rating | : | 208 to 230 V |
- Sales code
- Quiet performance (as low as 69 dB)
- One-stage scroll compressor operation
- Dual fuel capable with a compatible gas furnace and thermostat for energy saving heating
- Durably built-to withstand bad weather and debris
- Designed for corrosion resistance and lasting performance
- One-speed fan motor
- Non-ozone depleting R-410A refrigerant
- Suction line accumulator factory installed, bi-flow filter drier included for field installation
- Bi-flow filter drier included for field installation
- Integrated solid state control with time temperature defrost
- High/low pressure switches
- Filter drier
- Easy-access service valves on all model
- External high and low refrigerant service ports
- Only two-screws to access control panel
- Baked-on powder-coated finish on all sides
- Corrosion protection epoxy phenolic-coated aluminum fins
- Coated, weather-resistant cabinet screws
- Coastal-coated inlet grille with 3/8 in grille spacing for extra protection
