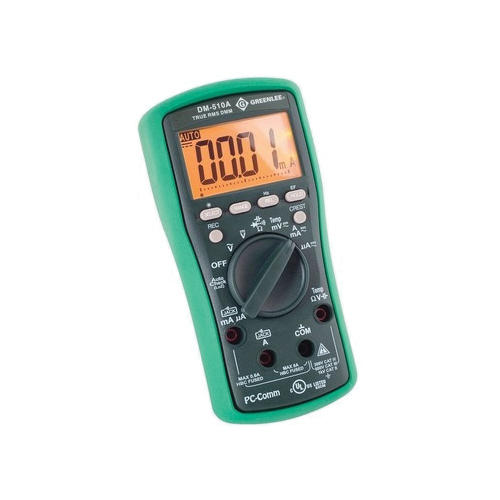

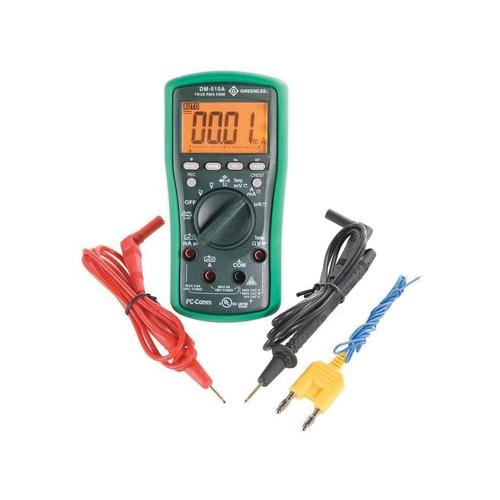

The GREENLEE® DM-200A, DM-210A, and DM-510A digital Multimeters are hand-held testing devices with the following measurement capabilities: AC and DC voltage, AC and DC current, frequency, and resistance. They also check diodes and verify continuity. An optional optically isolated computer interface with software facilitates the recording of readings from the meter to a computer.
GREENLEE® Digital Multimeter, 60 mV to 1000 V, 600 uA to 8 A, 10 Hz to 50 kHz, 5 Hz to 999.9 kHz, 60 nF to 3000 uF, 600 Ohm to 60 MOhm Resistance, -58 to 1832 deg F Measuring, Backlit LCD Display, +/-1% Diode Accuracy, USB, RS232 Interface, 0 to 80% Humidity Rating, 32 to 104 deg F, Additional Information: AAA Battery Size
| Additional Information | : | AAA Battery Size |
| Amperage Rating | : | 600 uA to 8 A |
| Capacitance | : | 60 nF to 3000 uF |
| Diode Accuracy | : | +/-1 % |
| Display Type | : | Backlit LCD |
| Frequency Rating | : | 10 Hz to 50 kHz, 5 Hz to 999.9 kHz |
| Humidity Rating | : | 0 to 80 % |
| Interface | : | USB, RS232 |
| Measuring Range | : | -58 to 1832 deg F |
| Resistance | : | 600 Ohm to 60 MOhm |
| Temperature Rating | : | 32 to 104 deg F |
| Voltage Rating | : | 60 mV to 1000 V |
- Measures voltage, current, resistance and frequency
- Tests continuity and diodes
- Backlit LCD with 6000 count display
- Two voltage detection modes - non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual range selection
- Relative offset mode to see changes in measurements, data hold
- True RMS for no-compromise accuracy
- Crest capture (peak hold) plus recording of max, min, max min and average
- Low impedance auto check mode - automatically selects AC or DC volts, resistance or continuity, low impedance masks ghost voltage pickup
- Measures capacitance
- Measures temperature using a type K thermocouple
Instruction/Installation Manual
