Fireye® YZ300 1022330
  1. pin-int

Fireye® YZ300 1022330

Fireye® YZ300 Interlock Annunciator Module, For Use With: BurnerLogix™ Control

  • Manufacturer: Carrier
  • Brand Name: Fireye®
  • Part Number: 1022330
  • MPN: YZ300
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

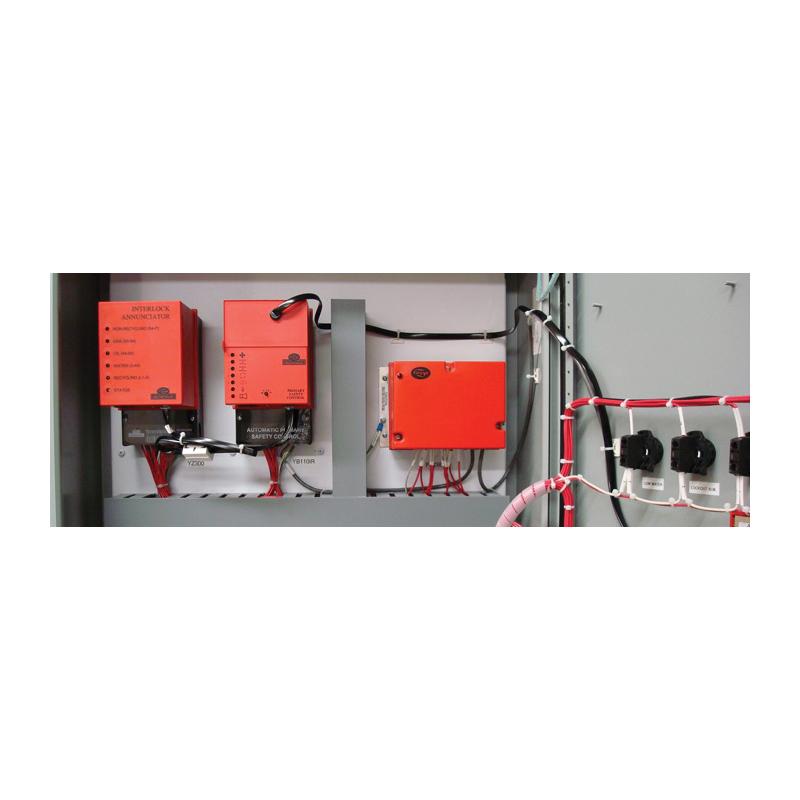

The YZ300 module shall interface with the Fireye® YB110 or ZB110 BurnerLogix and expand on the YB110 or ZB110 annunciation capabilities. All interlock messages can be programmed using the YZ300P. The interlock annunciator module connects to any YB110 or ZB110 BurnerLogix chassis/amplifier by means of a cable. (P/N ED580-4, ED580-8). A separate wiring base is required.

Fireye® Interlock Annunciator Module, 120 VAC, 10 VA Power, 50/60 Hz Frequency, For Use With: BurnerLogix™ Control, -40 to 140 deg F

Frequency Rating      :      50/60 Hz
Power Rating      :      10 VA
Suitable For Use With      :      BurnerLogix™ Control
Temperature Rating      :      -40 to 140 deg F
Voltage Rating      :      120 VAC
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Fireye_60_2872_1_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Fireye_YZ300_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Fireye_YZ300_Specification_Sheet.pdf
