Fireye® E110 1042431

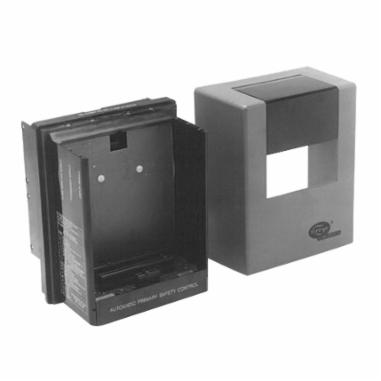

The Fireye® E110 FLAME-MONITOR System is a microprocessor based burner management control system designed to provide the proper burner sequencing, ignition and FLAME-MONITORing protection on automatically ignited oil, gas, and combination fuel burners. In conjunction with limit and operating controls, it programs the burner/blower motor, ignition and fuel valves to provide for proper and safe burner operation. The control also provides current operating status and lockout information in the event of a safety shutdown. The manner in which this information is displayed is dependent on the type of programmer (EP or EPD) and display module (ED510 or ED500). Refer to Flame-Monitor PROGRAMMER SELECTION later in this document for the various combinations of programmer and display modules. The E110 consists of the EB700 chassis, dust cover, and shortened mounting screw (P/N 48-1836). The display module (ED510), if required, must be ordered separately. Interchangeable programmer and flame amplifier modules allow for complete versatility in selection of control function, timing, and flame scanning means. Functions such as pre-purge, recycling interlocks, high fire proving interlock, and trial for ignition timing of the pilot and main flame are determined by the programmer module. The E110 Flame-Monitor can be used with ultra-violet, auto-check infrared, flame rod, or self-check ultraviolet flame scanners by choosing the proper amplifier module.

Fireye® Flame Safeguard Control, 120 VAC, -40 to 140 deg F

• A non-volatile memory which allows the control to remember its history and present position even when power is interrupted
• A constant flame signal read out via display module or 0 to 10 VDC output (EPD programmers only)
• Read out of main fuel operational hours and complete cycles via display module
• Modbus communications via RS485 multi-drop link
• Dip switches located on the EP programmer to allow selectable purge time
• A run/check switch which allows the operator to stop the program sequence in any of three different positions (Purge, PTFI or Auto)
• Remote display capability
• Annunciate 16 additional interlocks using E300 expansion module
• 25 VA power consumption

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Fireye_E110_Catalog.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Fireye_E110_Specification_Sheet.pdf
