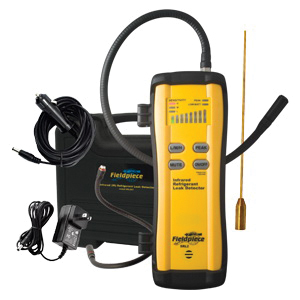

Like all of Fieldpiece's test instruments, the SRL2 infrared refrigerant leak detector is designed exclusively to make the HVACR Technician's job easier, faster, safer and more efficient. We set out to develop the best refrigerant leak detector for HVACR. We believe the SRL2 is it. It comes in kit form in a rugged, blow-mold case with all of the extras. The ergonomic design fits naturally in your hand. The ruggedized construction stands up to abuse most other leak detectors can't handle. The eight-hour battery life lets you work all day before recharging and the included vehicle and wall chargers help you during overtime. The mute and peak functions allow you to work the way you want to work. The magnetic hanger helps keep the detector out of the way when repairing a leak, but visible enough so you won't leave it on the job.
Fieldpiece Leak Detector Kit, 3.7 V, 0.1 to >1.05 oz Sensitivity, <75% Relative Non-Condensing Humidity Rating, 8 hr Battery Life, 4 s Recovery Time, 24 in L Probe, 1 s Response, 30 s Warm-Up Time, 32 to 104 deg F
| Battery Life | : | 8 hr |
| Humidity Rating | : | <75% Relative Non-Condensing |
| Probe Size | : | 24 in L |
| Recovery Time | : | 4 s |
| Response Time | : | 1 s |
| Sensitivity | : | 0.1 to >1.05 oz |
| Temperature Rating | : | 32 to 104 deg F |
| Voltage Rating | : | 3.7 V |
| Warm-Up Time | : | 30 s |
- Superior - controlled sensitivity, doesn't trigger on nuisance leaks unless in turbo mode
- Rugged/Ergonomic features - ruggedized boot and it fit's in your hand
- Infrared sensor, lasts up to 10 year
- Three sensitivity levels
- Audible/visual alarm - turn the beep on or off
- 8 hr battery charge work all day on one charge
- Non-conductive, sturdy probe
- Peak/mute buttons find leaks in noisy environments
- Magnetic hanger, hang the unit while you repair the leak
- Detects all CFC's, HCFC's, HFC's refrigerants and blends
- Sealed sensor - unlike heated diode and corona discharge leak detectors, the sensor doesn't "touch" refrigerant as it passes through the instrument, heated diode and corona discharge units tend to degrade or fail when they come in contact with high concentrations of refrigerant or touch liquid
- Doesn't trigger on oil or moisture like other types of detectors
- Senses change in refrigerant levels, works even in contaminated environments
- Up and running in less than 30 sec, some heated elements and corona discharge units take much longer to warm up, UV dyes can take several hrs to travel through a running system and can degrade system components
- Automatic off - 10 min after no activity
