Fieldpiece LT16A 1008458

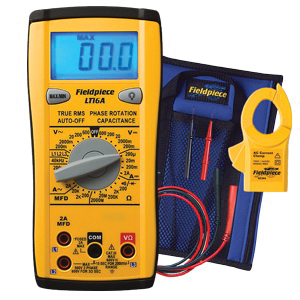

Fieldpiece LT16A Digital Multimeter, 200 mV to 600 V, 200 uA to 2 A, 200 Ohm to 2000 MOhm

  • Manufacturer: Fieldpiece Instruments
  • Brand Name: Fieldpiece
  • Part Number: 1008458
  • MPN: LT16A
  • UPC: 872641000332
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The LT16A is a classic style multimeter with True RMS and phase rotation. This manual ranger covers the electrical parameters you need for HVACR and, with detachable test leads, works with our accessory heads to test non-electrical parameters too. The LT16A meter measures current, resistance, voltage, capacitance, frequency, continuity and more. Test leads store in the meter body along with the tilt stand and magnetic hanger. The body is constructed of durable ABS plastic and a blue backlight makes the large LCD even more visible. The LT16A is a True RMS manual ranging DMM that comes with an amp clamp and includes phase rotation for testing three-phase motors. Use the MIN/MAX function to record highs and lows. The continuity beeper tells you if a circuit is open or closed. Operation of the LT16A is easy. Simply select a range and test to hunt down those electrical culprits. The electrical parameters on this meter are among the most comprehensive in the industry.

Fieldpiece Digital Multimeter, 200 mV to 600 V, 200 uA to 2 A, 10 Hz to 40 MHz, 200 to 20000 uF, 200 Ohm to 2000 MOhm Resistance, 0.5%, 1.5% Voltage Accuracy, 1%, 1.5%, 3.5% Current Accuracy, 1% Resistance Accuracy, 4% Capacitance Accuracy, 0.1% Frequency Accuracy, ABS, Yellow

Amperage Rating      :      200 uA to 2 A
Capacitance Accuracy      :      4 %
Capacitance      :      200 to 20000 uF
Color      :      Yellow
Current Accuracy      :      1%, 1.5%, 3.5%
Frequency Accuracy      :      0.1 %
Frequency Rating      :      10 Hz to 40 MHz
Material      :      ABS
Resistance Accuracy      :      1 %
Resistance      :      200 Ohm to 2000 MOhm
Voltage Accuracy      :      0.5%, 1.5%
Voltage Rating      :      200 mV to 600 V
  • Works with Fieldpiece accessory heads
  • Continuity indicator
  • Phase rotation - to insure three-phase motors spin in the correct direction
  • Silicone leads with detachable probe TipsLT case stand
  • Tilt stand and magnetic hanger
  • Bright blue backlight easily read the LCD in the dark
  • Rugged ABS case with rubber boot
  • Fits naturally in your hand despite classic design
  • Auto power-off (APO) to conserve battery life
  • Less than 100 ohm continuity
  • Min/max capture- record highest and lowest readings
  • Rubber boot for ruggedness
  • Two-pocket mail pouch-style case
  • Frequency for variable frequency drives
  • Continuity beeper
