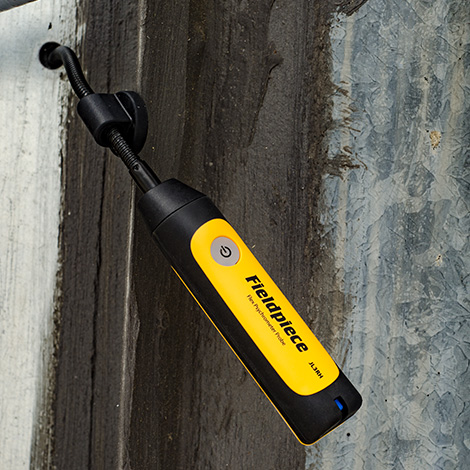

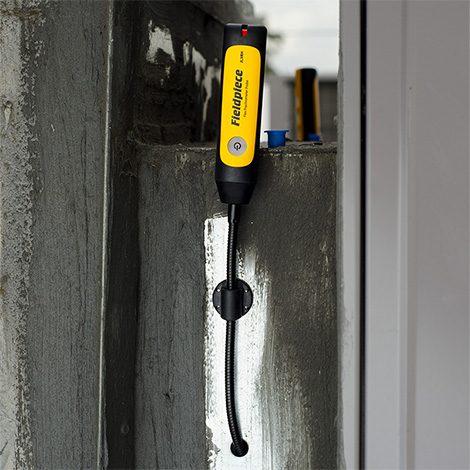

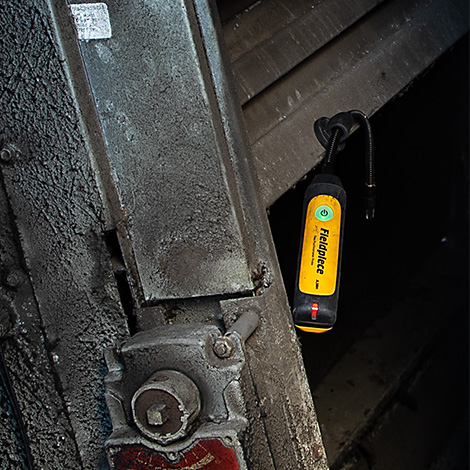

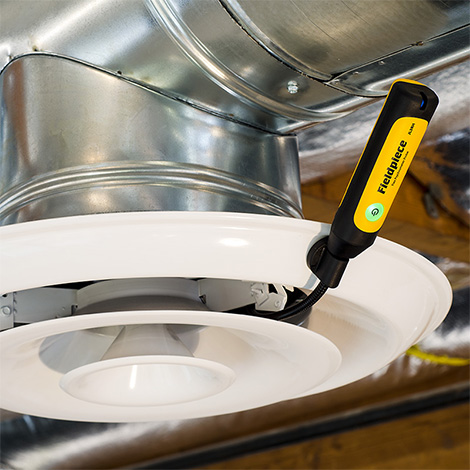

The JL3RH Job Link® System psychrometer probe has a long flexible wand and strong sliding magnet for easy measurements anywhere on the system. Get instant live readings from ducts, plenums, registers or Grilles for accurate diagnostics. Now handles extreme duct temperatures up to 250 deg F and as low as -40 deg F. A flexible wand with a powerful sliding magnet provides quick and easy measurements anywhere on the system.
Fieldpiece System Flex Psychrometer Probe, At 73.4 deg F (23 deg F) +/-2.5% (10%RH to 90%RH), +/-(5%) <10%RH, >90%RH, +/-(1 deg F) 32 to 113 deg F, +/-(0.5 deg C) 0 to 45 deg C, +/-(2 deg F) -4 to 32 deg F, 113 to 140 deg F, +/-(1 deg C) -20 to 0 deg C, 45 to 60 deg C Accuracy, 60 s Response, 32 to 122 deg F, 150 hr Battery Life, (2) AAA, NEDA 24A, IEC LR03 Battery, 1000 ft Wireless Range, 0.36 in Dia x 9-1/4 in L Probe, Additional Information: 0%RH to 100%RH Measurement Range, 0.33 lb
| Accuracy | : | At 73.4 deg F (23 deg F) +/-2.5% (10%RH to 90%RH), +/-(5%) <10%RH, >90%RH, +/-(1 deg F) 32 to 113 deg F, +/-(0.5 deg C) 0 to 45 deg C, +/-(2 deg F) -4 to 32 deg F, 113 to 140 deg F, +/-(1 deg C) -20 to 0 deg C, 45 to 60 deg C |
| Additional Information | : | 0%RH to 100%RH Measurement Range, 0.33 lb |
| Battery Life | : | 150 hr |
| Battery Type | : | (2) AAA, NEDA 24A, IEC LR03 |
| Probe Size | : | 0.36 in Dia x 9-1/4 in L |
| Response Time | : | 60 s |
| Temperature Rating | : | 32 to 122 deg F |
| Wireless Range | : | 1000 ft |
- Powerful 1000 ft wireless range with no transmitter required
- Communicates with Job Link app and wireless manifolds (SM380V/SM480V), strong magnetic hanger
- Supply and return side switch, water-resistant
Owners/User Manual
