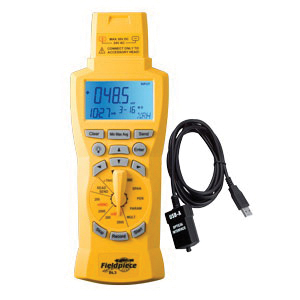

Fieldpiece DL3 1078388

The DL3 data logger measures and records any parameter from any accessory head Instrument we offer. It holds up to 20000 data points and can be set to record in a range from once every second to once every 999 hr. Record and export data in .xls format to your PC for use in work orders, troubleshooting and service contracts. A real-time clock time stamps every data point for pinpoint accuracy. Use multiple data loggers to monitor several parameters to make troubleshooting and commissioning easier. Combined with our accessory head instruments, we're comfortable saying the DL3 is the most versatile data logger for HVACR field service.

Fieldpiece Data Logger, 2000 mV, +/-0.1 % Accuracy, 0.01 mV Resolution, 1.5 V, 10 MOhm Input, Alkaline Battery, Additional Information: AA Battery Size

• Designed exclusively for logging HVACR parameters the DL3 gives technicians an accurate, time stamped results in a compact design
• TRIG (trigger) switch position. Set DL3 to record only the data you need
• Enhanced data scroll
• Bright, blue backlight
• Export data in .xls format
• Record data points manually, automatically, or trigger to log outside a range
• Real time clock - second, minute, hour, day, month, year
• All data points are time stamped
• Multiple data sets of various parameters can be stored
• Easy downloading to a PC
• Cost-effective, multi-channel recording using multiple DL3 data loggers
• 20000 data points
• Combine with the AAV3 anemometer to easily determine cfm
• Log any parameter from any accessory head
• View/print data from Excel
• Time stamps for every data point
• 19999 maximum reading with backlight LCD
• 1000 hr typical with alkaline battery
• 30 VDC or 24 VAC overload protection
• Powerful, versatile and easy-to-use

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Fieldpiece_DL3_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Fieldpiece_DL3_Specification_Sheet.pdf
