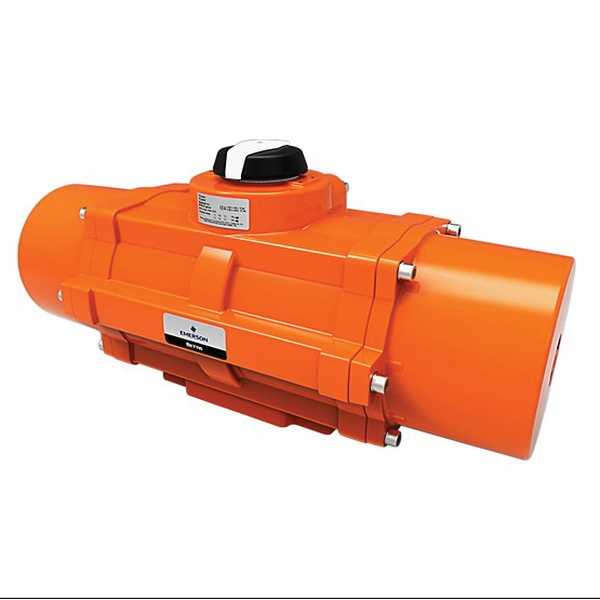

EMERSON™ RPES0600-SR30-CW 1009818

The Bettis™ RPE Series is a rack and pinion actuator, available in 12 sizes as spring return or double acting models. The actuators have a tough and reliable design and are intended to operate quarter turn valves or any other quarter turn application. The Bettis™ RPE Series comes with coated body and endcaps, has a special high corrosion-resistant aluminum pinion design and has stainless steel fasteners, resulting in a long-lasting durable actuator design.

EMERSON™ Bettis™ Pneumatic Rack and Pinion Valve Actuator, IP66/67 Enclosure, On/Off Switch, 120 psi, 12 to 4100 N-m Output Torque, #600 Actuator Size, Spring Return Valve Design, Aluminum Alloy Body, NBR Softgoods, Polyurethane Powder-Coated, -4 to 176 deg F

• Heavy-duty body castings provide maximum protection in the harsh environment of process plant locations
• Polyurethane powder coating provides excellent corrosion resistance on housing and end caps
• One-piece blowout-proof, pressure balanced, pinion allows safe in field re-configuration from fail close to fail open
• The aerospace-type alloy 7075 T6 for the pinion, provides the best combination of corrosion resistance, high strength and a lightweight construction as well as providing protection against galvanic corrosion
• Precision dual stroke adjustment provides accurate and intuitive end of stroke adjustment for the open and closed valve position
• Low maintenance bearings for pistons and pinion
• Accurately designed and machined components assure a perfect fit and long cycle life
• Stainless steel or Deltatone™-coated fasteners
• VDI/VDE 3845 (NAMUR) solenoid interface and top accessory interface
• Dual ISO 5211 mounting patterns allow low profile direct mounting to valves
• Drive inserts on the valve flange make direct mounting flexible, either for square, flat head or round with key way stems

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/EMERSON_RPED0040_Catalog.pdf
