EMERSON™ 316024G01 1056773

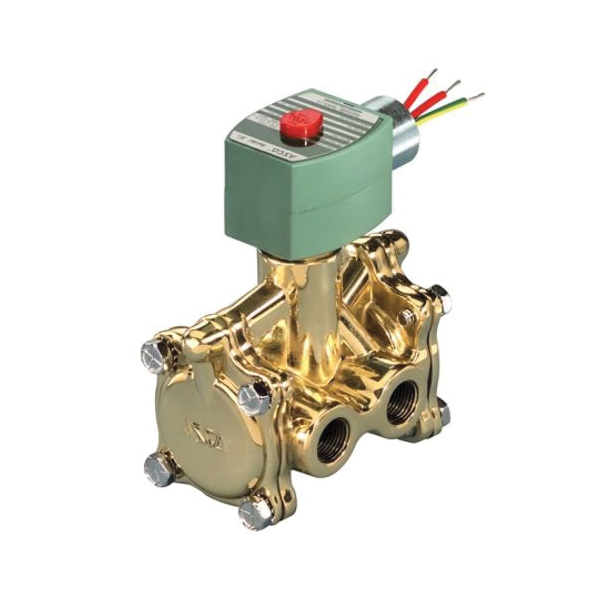

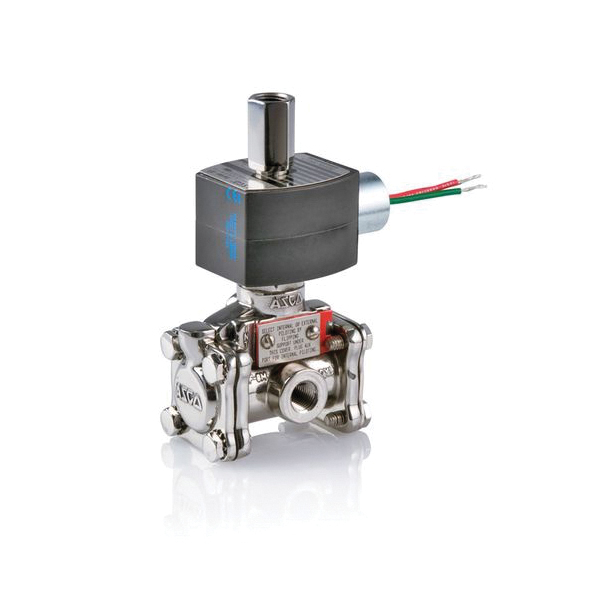

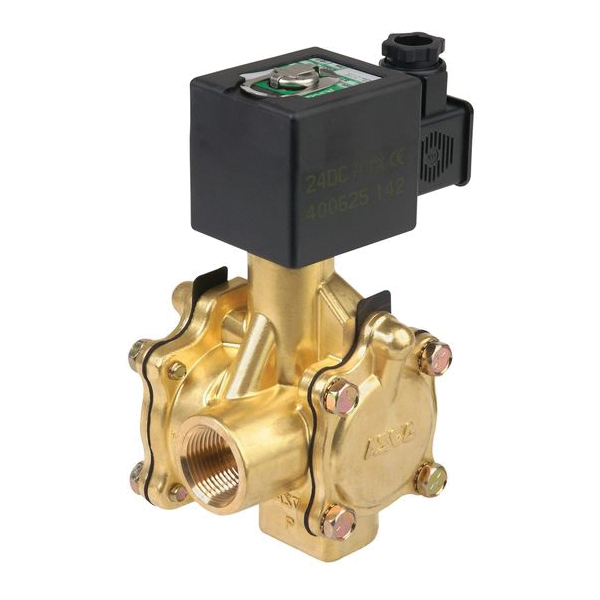

The Series 316 is a line of high flow, general service solenoid valves, which can be used to pilot large actuators and provide quick closing of large control valves. The diaphragm poppet design is suitable for controlling air, inert gas and liquids. Its resilient seating achieves tight shutoff.

EMERSON™ Pilot Solenoid Valve, Series: 316 Series, 1/2 in Nominal, NPT Connection, NPTF Port, NC, 250 psi, Air, Inert Gas, Water Media, 5/8 in Orifice, Class F Coil Insulation Class, 3-Way, NEMA 1, 2, 3, 3S, 4, 4X Enclosure, Brass Body, Nitrile Rubber Seal, Nitrile Rubber Disc, Stainless Steel Trim, 32 to 125 deg F

• Low power version has a molded one-piece solenoid with a highly efficient solenoid cartridge and special low wattage coil
• Handles ambient temperatures up to 175 deg F, designed for use in plant control automation to provide PLC compatibility
• Zero-minimum differential version features a brass body for general atmospheres and a stainless steel body for corrosive environments
• Intrinsically safe version is designed solely for installation in intrinsically safe or NIFW areas with properly approved and sized limiting barriers
• A full range of globally approved explosion-proof enclosures are available with this Series

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/EMERSON_316024G01_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/EMERSON_316024G01_Specification_Sheet.pdf
