Edwards Signaling™ 340-6N5 1038011
  1. pin-int

Edwards Signaling™ 340-6N5 1038011

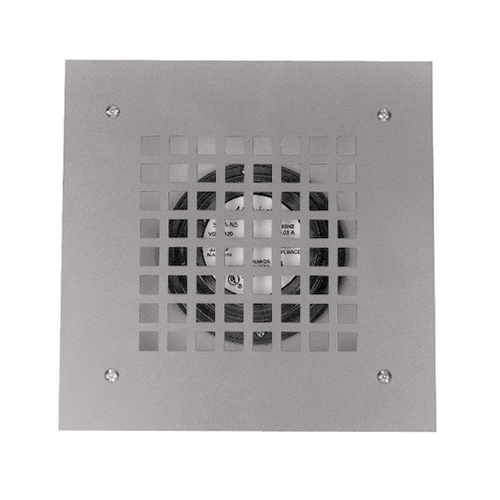

Edwards Signaling™ ADAPTABEL® 340-6N5 AC Vibrating Bell, 120 VAC, 0.07 A, 102 dB, 6 in Gong

  • Manufacturer: Carrier
  • Brand Name: Edwards Signaling™
  • Part Number: 1038011
  • MPN: 340-6N5
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Edwards Signaling™ 340 Series and 435 Series are vibrating bells that produce a long, continuous ringing sound. The striker continues to strike the gong in rapid fire as long as current is applied. Specified for timing, scheduling, paging and general alarm applications.

Edwards Signaling™ AC Vibrating Bell, 120 VAC, 0.07 A, 8.4 VA, 102 dB Sound Level, 6 in Gong Size, 7-1/8 in Diameter, 3-11/16 in Depth

Amperage Rating      :      0.07 A
Depth      :      3-11/16 in
Diameter      :      7-1/8 in
Gong Size      :      6 in
Power Rating      :      8.4 VA
Sound Level      :      102 dB
Voltage Rating      :      120 VAC
  • Completely assembled with all hardware supplied
  • Die-cast housing
  • Corrosion-resistant heat flowed epoxy finish
  • Mounts directly on surface or electrical box
  • Self-compensating solenoid plunger
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Edwards_Signaling_340_4R5_Specification_Sheet.pdf
