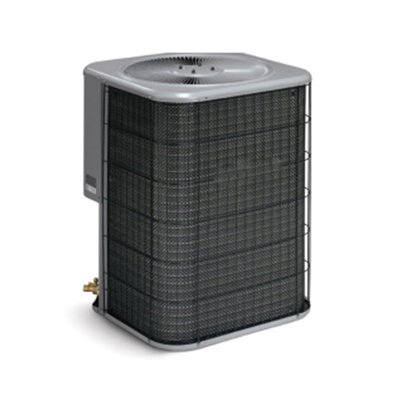

Ducane™ Air Conditioner Condensing Unit, Series: 4AC14L Series, 2 ton Nominal Capacity, 24000 Btu/hr, 208/230 V, 15 A, 1/6 hp HP Rating, 825 rpm Rotational Speed, 60 Hz, 1 ph, Scroll Compressor, 12.2 EER, 14 SEER, 1 Stage, R-410A, 76 dBA, 25 A Fuse, 850 cfm, 28-1/4 in W x 28-1/4 in D Base, 29 in H x 28-1/4 in W x 28-1/4 in D
| Amperage Rating | : | 15 A |
| BTU Rating | : | 24000 Btu/hr |
| Base Size | : | 28-1/4 in W x 28-1/4 in D |
| Compressor Type | : | Scroll |
| Dimensions | : | 29 in H x 28-1/4 in W x 28-1/4 in D |
| EER Rating | : | 12.2 |
| Flow Rate | : | 850 cfm |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A |
| HP Rating | : | 1/6 hp |
| Nominal Capacity | : | 2 ton |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 825 rpm |
| SEER Rating | : | 14 |
| Series | : | 4AC14L Series |
| Sound Level | : | 76 dBA |
| Voltage Rating | : | 208/230 V |
- High-quality condenser coil with copper tubing and enhanced louvered fin for maximum heat transfer capacity
- Top discharge directs hot air and sound away from living area and shrubbery
- All units factory run tested
- Louvered cabinet protects coil from fin damage
- Easy access to electrical panels, pre-wired for easy hook-up
- Liquid line drier shipped loose
- High-pressure switch factory installed
