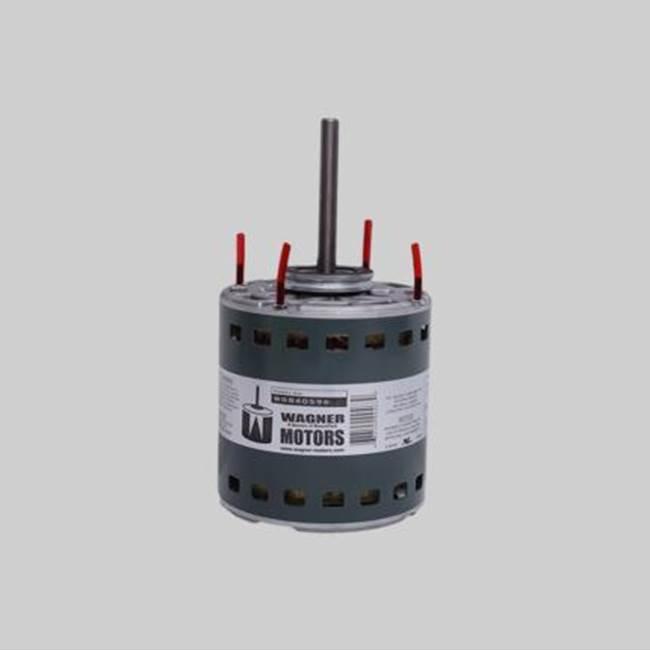

DiversiTech® WG840596 1057169

This Wagner® WG840596 direct drive furnace blower motors, 1 hp, 1075/3 rpm, 5.59 FLA, 208 to 230 V motor is specially designed to cover a range of applications. The motors are electrically reversible, feature an automatic thermostat overload protector and a standard 48 frame motor casing size. There is a continuous duty, air over on this motor and the 2-1/2 in Dia hub rings are included. This product was made by DiversiTech® for the DiversiTech® branded items.

DiversiTech® Wagner® High Temperature Direct Drive Furnace Blower Motor, 1 hp HP Rating, 208 to 230 V, 5.59 A, 60 Hz, 1075 rpm Speed Rating, 3 Speed, Open Air Over, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Ball Bearing, Belly Band, Shaft Down, Shaft Up Mount, 140 deg F, Insulation Class: Class B

• Extended bolts - extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
• Supportive foam cradle - A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft and mounting bolts during shipment
• Large label - the informative product label contains the motor model number in large, easily identifiable type
• Capacitor size on box - the appropriate size of 370 VAC run capacitor is noted on every motor carton
• Ball bearings - fractional horsepower motors include ball bearings which allow greater heat endurance, improve performance, increase reliability and enhance motor life
• Large wiring diagram - Detailed and large wiring diagrams are on the motor and the motor carton and also in the installation and safety instruction sheet
• Carton handle - the motor carton has been designed with an innovative handle to make the motors much easier to carry
• For customer convenience, Wagner® provides a complete manufacturer cross-reference on the side of every motor carton
• Insulated disconnects - run capacitor connections are insulated for increased safety
• The flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided
• Easy to read packaging - the vibrant design of the fractional horsepower motor's packaging makes reading easy and direct
• The distributor can identify the stock of motors on the shelf with ease, the application, voltage and horsepower of the motor are clearly visible
• Extended wires - Wagner® motor wires are thirty inches long
• The added length makes it easier for the contractor to install the new motor
• Reversing plug - the electrical reversing plug simplifies rotation direction changes
