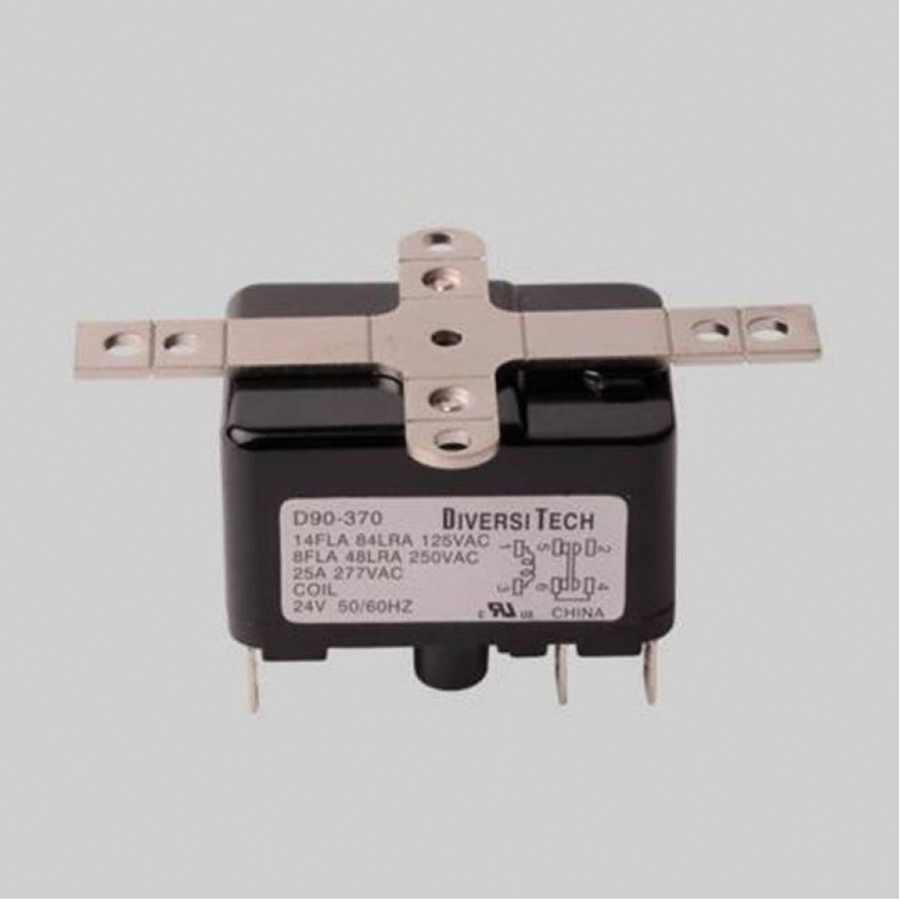

The DiversiTech® D90-370 general purpose relays 9400 Series, single pole, double throw, 18 A, 12/60 FLA at 125 V, 8/48 FLA at 250 V, 24 VAC coil voltage. This product features quick-connect terminals with universal mounting with break away tabs . This product was made by DiversiTech® for the DiversiTech® branded items.
DiversiTech® Relay, Series: 9400 Series, 18 A, 50/60 Hz, 24 VAC Coil, SPDT, 14 A at 125 V, 48 A at 250 V, 8 A at 250 V, 84 A at 125 V Contact, 1 Pole, Universal Mount, Quick-Connect Terminal, 1-3/4 in Height, 2 in Width, 3 in D
| Amperage Rating | : | 18 A |
| Coil Voltage | : | 24 VAC |
| Contact Configuration | : | SPDT |
| Contact Rating | : | 14 A at 125 V, 48 A at 250 V, 8 A at 250 V, 84 A at 125 V |
| Depth | : | 3 in |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 1-3/4 in |
| Mounting Type | : | Universal |
| Number of Poles | : | 1 |
| Series | : | 9400 Series |
| Terminal Type | : | Quick-Connect |
| Width | : | 2 in |
- Features quick connect terminals with universal mounting with break away tabs
- Provide excellent functionality and are ideal for any application from controlling smaller loads, to those requiring high current carrying capacity
- Used for switching solenoids, fan motors and general-purpose switching
- Sealed construction requires no arc space, saves space and helps ensure safe applications
- Assembly and installation is quick and easy
- UL recognized
Specification Sheet
