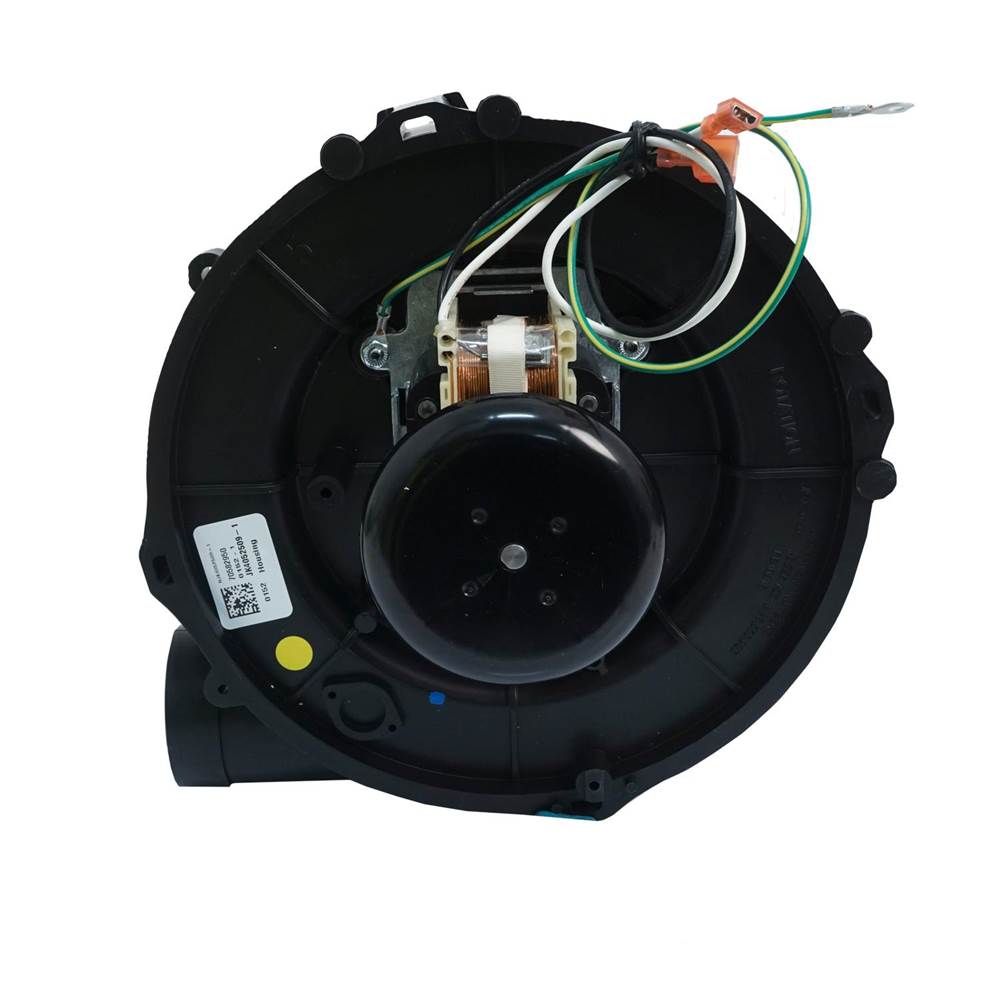

The Packard 66071, draft inducer replaces coodman is a shaded pole draft inducer assembly designed to replace original Goodman model 017100000S Packard branded draft inducers performance specifications are based on the OEM models they are designed to replace. DiversiTech encourages the use of cross reference information to choose the right draft inducer for your application.
DiversiTech® Ducted Draft Inducer, 1.93 A, 120 V, 60 Hz, 1.5 hp, 3000 rpm Speed, CWLE Rotation, Ball, 1 Speed, Open Enclosure, Class B, Plastic, 40 deg C Ambient, 1-1/2 in Stack, NEMA C-Frame
| Additional Information | : | 1-1/2 in Stack, NEMA C-Frame |
| Amperage Rating | : | 1.93 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1.5 hp |
| Insulation Class | : | Class B |
| Material | : | Plastic |
| Number of Speeds | : | 1 |
| Rotation Type | : | CWLE |
| Speed Rating | : | 3000 rpm |
| Temperature Rating | : | 40 deg C Ambient |
| Voltage Rating | : | 120 V |
- Shaded pole
- Thermally protected
- Open air over
- 12.5 to 11.5 in leads with white lead female terminal and black lead male terminal
