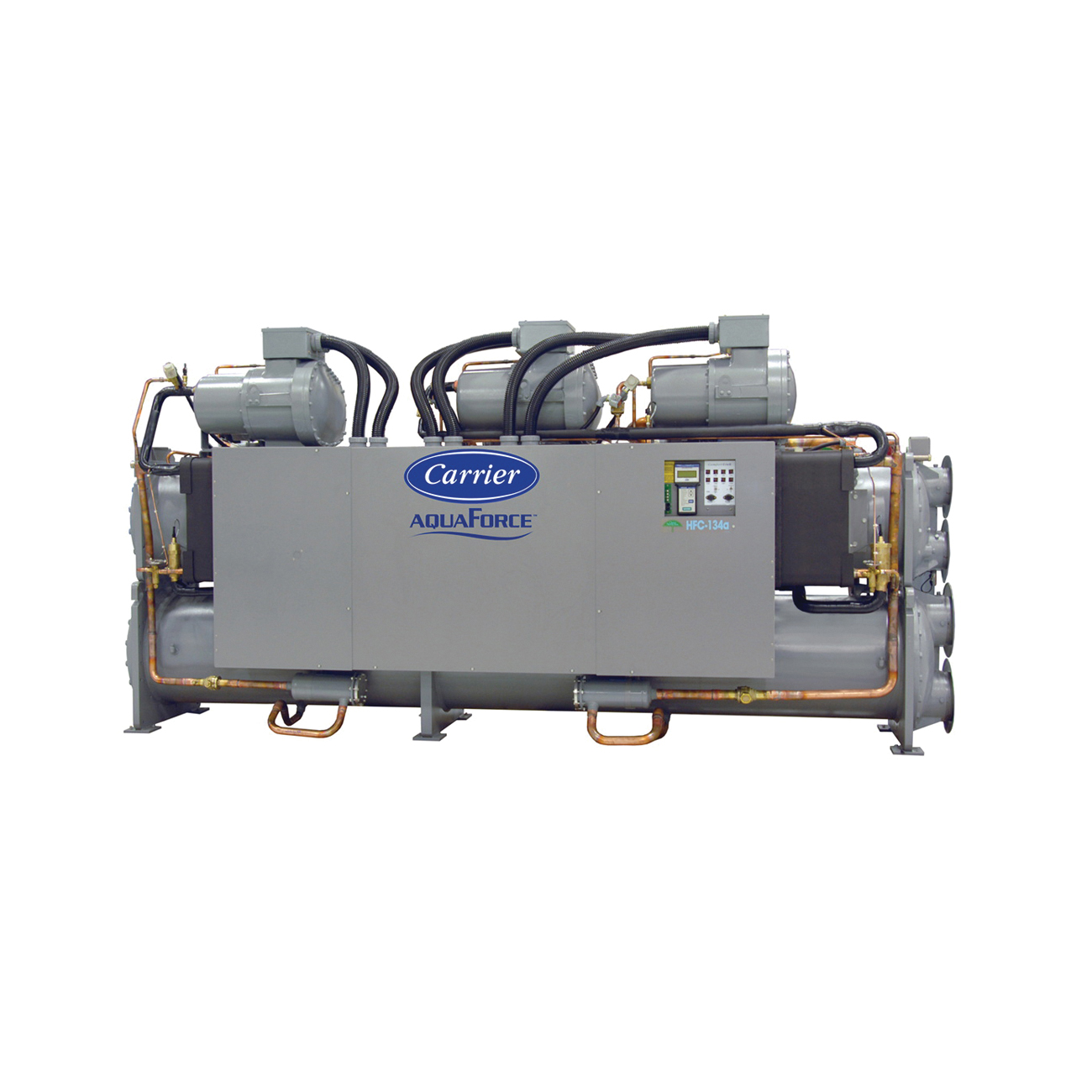

The 30HX units are high-efficiency, condenser less, freshwater-cooled or seawater-cooled chillers, suitable for installing in the ship's machinery space. The units have a quiet, low-vibration design featuring screw compressors. The 30HX chillers are less than 1 m wide, compact enough to fit through narrow hatches and access doors, making them great re-fit units.
Carrier® High-Efficiency Condenserless Indoor Liquid Chiller, Model: 30HX, 67.22 in Height, 93 in Width, 33.34 in Depth, Hermetic Twin Screw Compressor, 460 V, 60 Hz, 3 ph Phase, 75.3 kW, HFC-134A Refrigerant, 250.4 gpm Flow Rate, Tonnage: 106 ton, 250 psig, 150 deg F
| Compressor Type | : | Hermetic Twin Screw |
| Depth | : | 33.34 in |
| Flow Rate | : | 250.4 gpm |
| Frequency Rating | : | 60 Hz |
| Height | : | 67.22 in |
| Model | : | 30HX |
| Phase | : | 3 ph |
| Power Rating | : | 75.3 kW |
| Pressure Rating | : | 250 psig |
| Refrigerant Type | : | HFC-134A |
| Temperature Rating | : | 150 deg F |
| Tonnage | : | 106 ton |
| Voltage Rating | : | 460 V |
| Width | : | 93 in |
- Low energy consumption during part load and full load operation
- Leaving-fluid temperature directly controlled to within 0.5 deg F (0.3 deg C)
- Entering-fluid temperature continuously monitored to detect flow or load changes
- Compatible with Carrier® Comfort™ Network® (CCN) communication link
- Heat recovery capability up to 135 deg F (57.22 deg C)
- Low voltage control circuits
- Short cycle protection
- Dual chiller control
- Temperature reset from return fluid
- Chilled water flow switch
- Electronic refrigerant gauges
- NEMA 4 (IP 56) control panel
- Cleanable shell-and-tube condenser with copper (freshwater-cooled) or 90/10 Cu/Ni (seawater-cooled) tubes
- Alarm contacts
- Filter drier
