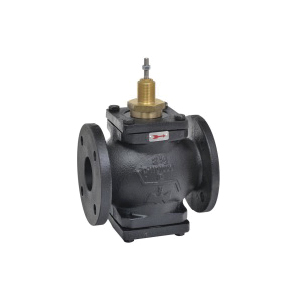

BELIMO® Globe Valve, 4 in Nominal, Flanged Connection, 50 psi Steam, 100 psi Rotary Steam, 150 psi Water at 250 deg F, 125 lb Pressure Class, 2-Way, Cast Iron Body, Stainless Steel Seat, Stainless Steel Stem, TFE Packing, 170 Cv Flow Coefficient (Cv), 32 to 350 deg F Water, 32 to 338 deg F Steam, 13 in L
| Body Material | : | Cast Iron |
| Connection Type | : | Flanged |
| Dimensions | : | 13 in L |
| Flow Coefficient (Cv) | : | 170 Cv |
| Nominal Size | : | 4 in |
| Number of Ports/Ways | : | 2-Way |
| Packing Material | : | TFE |
| Pressure Class | : | 125 lb |
| Pressure Rating | : | 50 psi Steam, 100 psi Rotary Steam, 150 psi Water at 250 deg F |
| Seat Material | : | Stainless Steel |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 32 to 350 deg F Water, 32 to 338 deg F Steam |
- Balanced plug design
- Perfect for high close-off requirements
- Fail safe on larger valves
- Covers wide range of operating temperatures
- Linear flow characteristic
- Stem up-open A to AB action
- 50 psi maximum differential pressure of steam and water
- 95 deg angle of rotation
- Reversible with CW/CCW-mounting spring, reversible with built-in switch motor rotation
- Zinc-coated metal and plastic casing actuator
- Manual override
- 3 ft cables with 1/2 in conduit electrical connection
- Stainless steel plug
