BELIMO® F6500-150SHP+SY8-110 1036902
  1. pin-int

BELIMO® F6500-150SHP+SY8-110 1036902

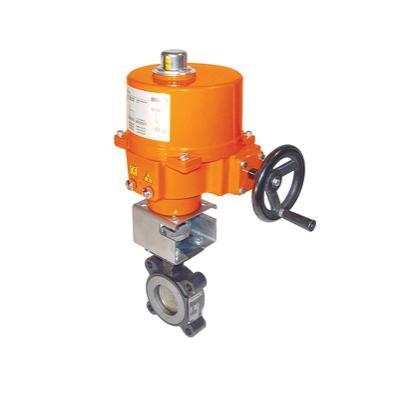

BELIMO® F6500-150SHP+SY8-110 Butterfly Valve With Actuator, 20 in, Flanged, Carbon Steel, 285 psi Close-Off

  • Manufacturer: BELIMO Holding AG
  • Brand Name: BELIMO®
  • Part Number: 1036902
  • MPN: F6500-150SHP+SY8-110
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

BELIMO® Butterfly Valve, 20 in Nominal, Flanged Connection, 285 psi Close-Off, 125 lb, 150 lb Pressure Class, 2-Way, Carbon Steel Body, RPTFE Seat, 316 Stainless Steel Disc, 14420 Cv at 90 deg Flow Coefficient (Cv), -20 to 400 deg F Media, 28 in L

Body Material      :      Carbon Steel
Connection Type      :      Flanged
Dimensions      :      28 in L
Disc Material      :      316 Stainless Steel
Flow Coefficient (Cv)      :      14420 Cv at 90 deg
Nominal Size      :      20 in
Number of Ports/Ways      :      2-Way
Pressure Class      :      125 lb, 150 lb
Pressure Rating      :      285 psi Close-Off
Seat Material      :      RPTFE
Temperature Rating      :      -20 to 400 deg F Media
  • Bubble tight shut-off to ANSI class 150 standards
  • Long stem design allows for 2 in insulation minimum
  • Completely assembled and tested, ready for installation
  • Non fail safe actuator
  • Floating three point control-type
  • Quarter-turn, mechanically limited controllable flow range
  • 75 s running time
  • Lug-types
  • No pressure independent
  • Modified equal percentage, unidirectional flow characteristics
  • 82 deg controllable fluid range
  • 17-4 ph stainless shaft
  • PTFE gland seal
  • Glass backed PTFE bushings
  • 100:1 range ability
  • 32 ft/s maximum velocity
  • Service type chilled or hot water, up to 60% glycol
