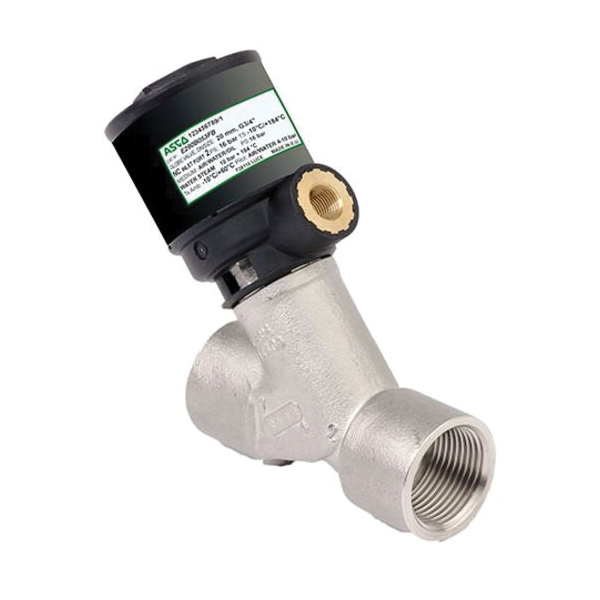

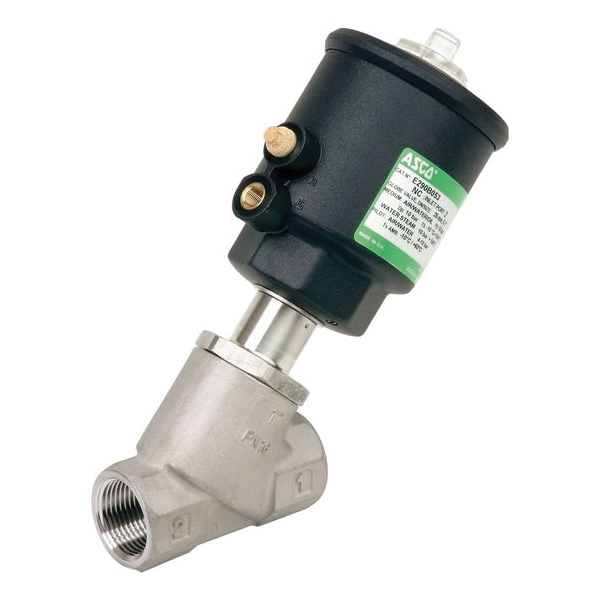

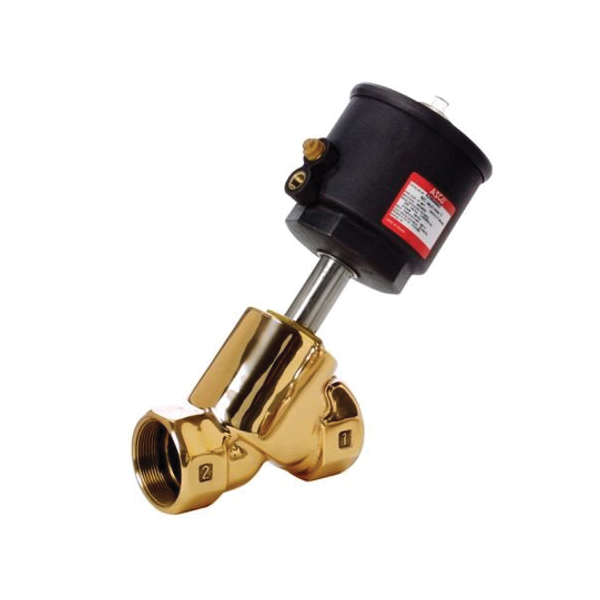

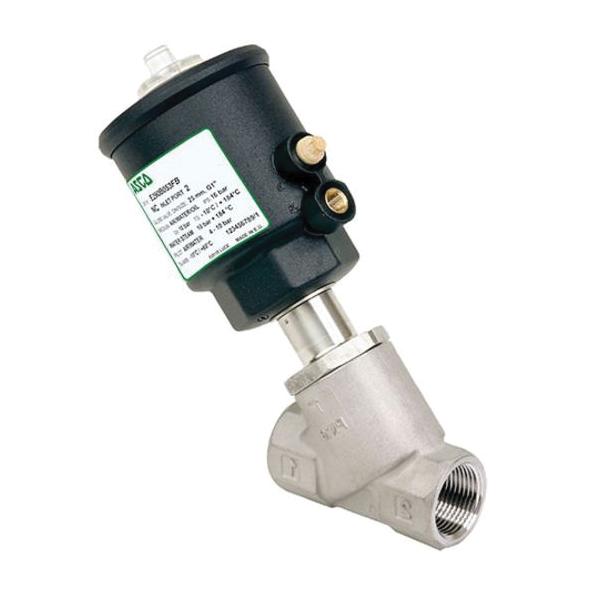

The Series 290 consists of 2-way direct acting valves available in normally closed or normally open constructions. Built for demanding applications, these valves come in a straight through body design made of bronze or stainless steel. There are many optional features including visual and electrical position indicator or a stroke limiter.
Asco Angle Body Multi-Purpose Valve, Series: 290, 1 in Nominal Size, FNPT Connection, NO, 150 psi, 240 psi Pressure, Media: Air, Inert Gas, Hot Water, Light Slurries, Oil, Steam, Water, Motorized, Pneumatic, Pilot Actuator, 1 in Orifice, 120 V, 2 Positions, 3 Ports/Ways, NEMA 4/4X Enclosure, Bronze Body, Stainless Steel Stem, FKM/PTFE Chevron/PTFE Seal, Brass Disc, Brass Trim, 15 to 140 deg F, Dimensions: 7.2 in W x 7.7 in H
| Actuator Type | : | Motorized, Pneumatic, Pilot |
| Body Material | : | Bronze |
| Configuration | : | NO |
| Connection Type | : | FNPT |
| Dimensions | : | 7.2 in W x 7.7 in H |
| Disc Material | : | Brass |
| Enclosure Type | : | NEMA 4/4X |
| Media | : | Air, Inert Gas, Hot Water, Light Slurries, Oil, Steam, Water |
| Nominal Size | : | 1 in |
| Number of Ports/Ways | : | 3 |
| Number of Positions | : | 2 |
| Orifice Size | : | 1 in |
| Pressure Rating | : | 150 psi, 240 psi |
| Seal Material | : | FKM/PTFE Chevron/PTFE |
| Series | : | 290 |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 15 to 140 deg F |
| Trim Material | : | Brass |
| Voltage Rating | : | 120 V |
- Proven durability in handling aggressive fluids such as steam, hot water, solvents and light slurries
- Rugged watertight actuator made from tough fiber composite and protected with a double O-ring seal
- Spring loaded stem seal FKM fluoroelastomer wiper keeps harmful grit way from the stem area for exceptional durability
- Smooth stem movements guided by two oversized bearings for maximum reliability
- Anti-water hammer design - fluid passes under the disc resulting in slower closure
- Some versions are compatible with FDA CFR21 for food and beverage applications
- 63 mm operator
