ARMSTRONG AIR® 4030-4X3X11.5 1066322
  1. pin-int

ARMSTRONG AIR® 4030-4X3X11.5 1066322

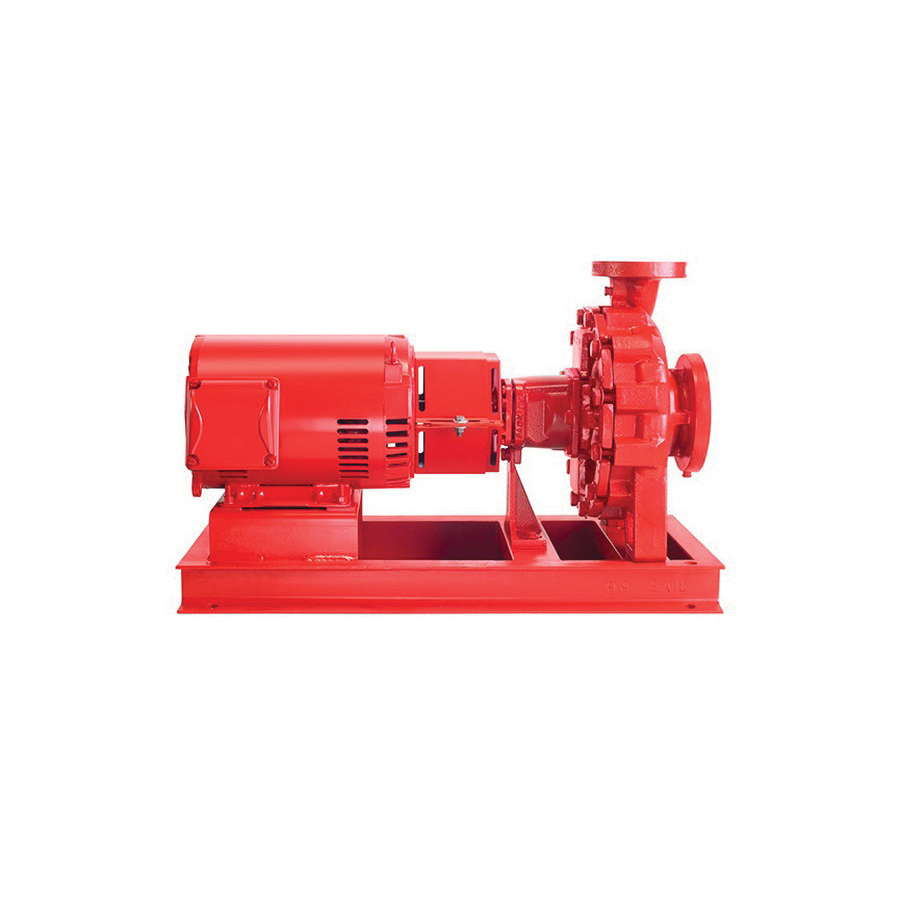

ARMSTRONG AIR® 4030-4X3X11.5 End Suction Pump, 20 hp

  • Manufacturer: Lennox International
  • Brand Name: ARMSTRONG AIR®
  • Part Number: 1066322
  • MPN: 4030-4X3X11.5
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The Armstrong 4030 horizontal end-suction (ES) pumps are engineered to substantially reduce cost over competitor designs across installation, operation and lifetime maintenance. High-efficiency NEMA-premium motors ensure low energy consumption and cost.

ARMSTRONG AIR® End Suction Pump, 50 Hz, 20 hp, 3 in Flange Discharge, Base Mount, 250 deg F

Discharge Size      :      3 in Flange
Frequency Rating      :      50 Hz
HP Rating      :      20 hp
Mounting Type      :      Base
Temperature Rating      :      250 deg F
  • Armstrong 4030 pumps are equipped with high-efficiency NEMA-premium motors for significant reduction in energy cost
  • ANSI-style centreline discharge casing eliminates air binding
  • Sintered silicon carbide mechanical seal seat for longer life
  • Confined casing gasket eliminates blow-outs
  • Universal replacement seals, bearings and motors available locally world wide
  • Confined non-asbestos fiber gasket
  • Cast iron bearing frame
  • Permanently lubricated anti-friction bearings
  • Carbon steel shaft, stainless steel shaft sleeve
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Armstrong_Air_4030_4X3X11_5_Specification_Sheet.pdf
