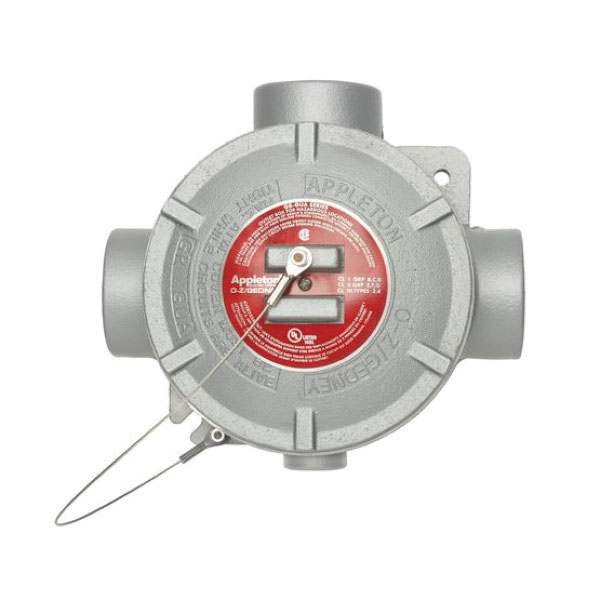

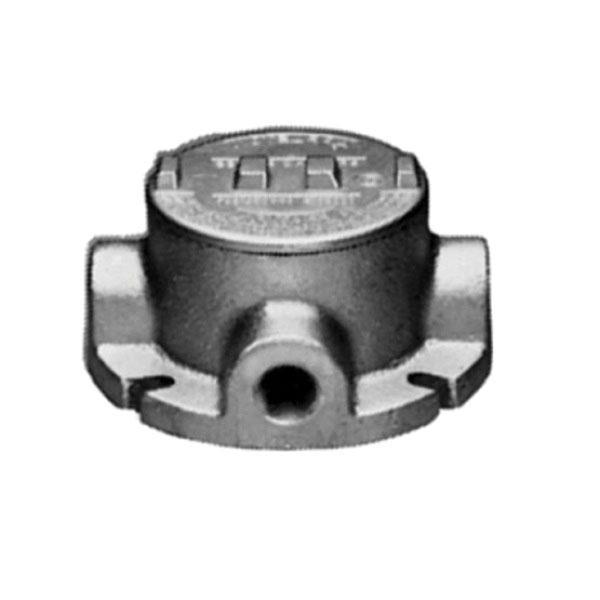

Appleton™ Conduit Outlet Box, 18 cu-in, 4, 4X, NEMA 3, Aluminum Body, Aluminum Cover, Epoxy Powder-Coated, -25 to 40 deg C, 6.72 in Dia
| Body Material | : | Aluminum |
| Capacity | : | 18 cu-in |
| Cover Material | : | Aluminum |
| Diameter | : | 6.72 in |
| Enclosure Type | : | 4, 4X, NEMA 3 |
| Finish | : | Epoxy Powder-Coated |
| Temperature Rating | : | -25 to 40 deg C |
- Explosion-proof, dust ignition-proof
- Various hub arrangements and hub size combinations with mounting feet/flange and covers
- Ductile iron bodies have high-tensile strength, ductility and provide great resistance to corrosion, impact and shock
- Internally threaded body with externally threaded cover
- Various domed covers and canopies
- GRTS adds cable attached cover
- Standard O-rings provide rain-tight fit, NEMA 3, 4 GRTS adds NEMA 4X with aluminum body/cover
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- GRTS has optional factory installed drain and terminal blocks (10 AWG capacity)
- GRTS Series is ideally suited for stanchion mounting lighting applications
- Used with threaded metal conduit for general-purpose wiring
- Function as sealing fittings when used with sealing covers
